In the event you grew up within the Eighties or ’90s, you probably keep in mind shaky dwelling video footage, taken with a handheld camcorder, of household gatherings, holidays, and different occasions.
Camcorders mixed a digital camera with a video recorder. They included a rechargeable battery, a slot for a videotape, and a shoulder strap. Most had been outfitted with an optical zoom lens and a small, articulating display screen—a show mounted on a hinge that might tilt and rotate. The operator might test the display screen to view what was being recorded.
The person’s pure hand and physique actions when filming led to jittery footage. The easiest way to get a gentle shot was to position the camcorder on a tripod or a gimbal: a motorized stabilizer.

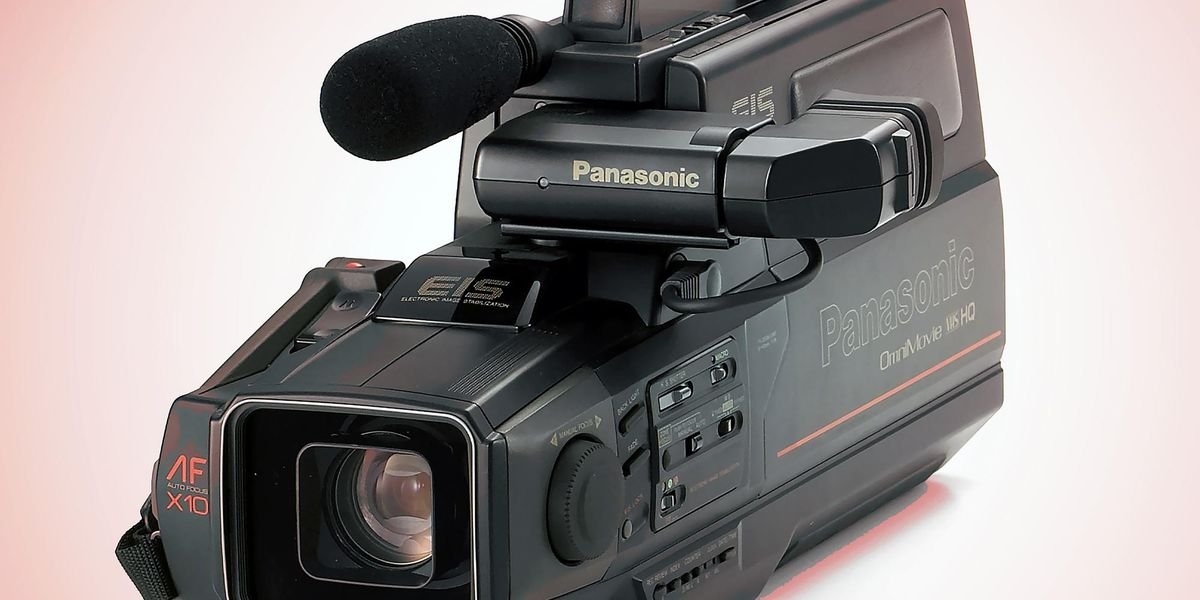

There have been fewer poor-quality recordings after Panasonic launched its PV-460 VHS camcorder in 1988. It was the primary video digital camera to incorporate an optical picture stabilizer, which compensated for actions. Stabilization options are actually commonplace in as we speak’s cameras together with ones present in smartphones and drones.
The PV-460 camcorder was honored as an IEEE Milestone on 9 July. The dedication ceremony was held in Kadoma, Japan, on the Panasonic Museum, which shows the corporate’s previous merchandise.
The IEEE Kansai Section in Japan sponsored the Milestone.
“The discharge of the PV-460 essentially reworked private videography, enriching the way in which folks captured journey, occasions, and household reminiscences,” part members wrote in help of the Milestone nomination. Their proposal is on the market here.
“Its picture stabilization options democratized video creation by dramatically reducing technical obstacles, permitting extraordinary folks to specific themselves with newfound artistic freedom,” they wrote. “Past the house, picture stabilization know-how discovered important functions in specialised fields, contributing to developments in areas corresponding to academic media and telemedicine.”
The historical past of camcorders
Earlier than the camcorder was invented in 1982, folks filming occasions within the Seventies and early Eighties used two items of kit: a video digital camera and a separate video cassette recorder (VCR), which had been linked by a multipin cable. The digital camera was concerning the dimension of a toaster, and the VCR could possibly be as massive as a suitcase. To file, the individual operated the digital camera with one hand and carried the VCR within the different or rested it on a shoulder. The cable transmitted the pictures from the digital camera to the cassette.
The PV-460 was made attainable by a number of groundbreaking improvements, in keeping with the Milestone proposal, considered one of which dates again to the Fifties.
In 1956 Italian producer Durst launched its Automatica, thought-about one of many first cameras to make use of computerized publicity know-how. By combining a light-weight meter with the digital camera’s inside mechanical techniques, the know-how eliminated the need of calculating publicity settings by hand when the lighting shifted or different situations modified. The innovation enabled beginner photographers to take first rate footage.
The following breakthrough know-how—autofocus—was invented in 1973 by Norman Stauffer, a supervisor of analysis for Honeywell in Littleton, Colo. It makes use of a sensor, a management system, and a motor to concentrate on a specific space. The invention led to the event of early digital autofocus cameras, which eradicated the necessity for photographers to manually modify the lens. Stauffer acquired the 1990 IEEE Masaru Ibuka Consumer Technology Award for his invention.
“The discharge of the PV-460 essentially reworked private videography, enriching the way in which folks captured journey, occasions, and household reminiscences.” —Milestone sponsors
U.S. inventor Jerome Lemelson is credited with growing applied sciences that underpinned the camcorder, in keeping with MIT. Within the Fifties and ’60s, Lemelson filed a number of patent functions associated to video and audio recording gadgets. In 1980 he was granted patents associated to a transportable video digital camera system. In 1982 JVC and Sony used the applied sciences to develop what they known as the digital camera/recorder, which turned referred to as a camcorder.
Sony launched the primary handheld camcorder in 1983: the Betamovie BMC-100P. It used the Betamax videocassette format and will file as much as 3.5 hours of footage on 1.27-centimeter cassette tape. The operator rested the two.5-kilogram camcorder on high of a shoulder to shoot footage. It bought for round US $2,000 on the time (roughly $33,400 as we speak). The machine couldn’t rewind or play again tapes; it might solely file.
Different electronics corporations together with JVC quickly launched their very own fashions utilizing the VCR format, which finally changed Betamax.
Over time, camcorders turned extra compact.
However not one of the corporations might repair the shaky-footage drawback.
Fixing a shaky drawback
A group at Panasonic led by researcher Mitsuaki Oshima took on the duty of picture stabilization: detecting and correcting small digital camera actions, known as digital camera shake, in keeping with the proposal. Oshima, an IEEE life senior member, is now an honorary Fellow at Panasonic.
“The actions that wanted to be detected and corrected included horizontal, vertical, and rotational motions—particularly pitch, yaw, and roll,” the Milestone sponsors wrote. “Rotational movement, specifically, turns into the dominant issue affecting picture stability throughout high-magnification capturing. Subsequently, the event group targeted on detecting rotational movement and commenced growing an angular velocity sensor.”
An AVS, primarily a gyroscope, detects how shortly an object is altering its orientation in area.
Sensors able to detecting angular velocity had been massive and costly on the time, making them unsuitable for shopper video cameras, the sponsors wrote. What was wanted, they mentioned, was a compact and cheap model.
Oshima and his group constructed a high-performance, small, low-cost vibration-type gyroscope. The stabilization mechanism included a miniaturized sensor paired with an optical-axis correction mechanism.
The mechanism adjusts the lens or image sensor to counteract bodily shifting and vibrations, guaranteeing that the sunshine path stays centered on the sensor—which is essential for maximizing sharpness and high quality, the Milestone sponsors wrote.
“The system detects lens displacement attributable to digital camera shake and instantly compensates for it, guaranteeing secure video footage,” they wrote. “Because of this, the results of digital camera shake are minimized, permitting customers to seize clean and regular movies with ease.”
With out Oshima’s picture stabilization know-how, the PV-460 wouldn’t have been developed and launched in 1988.
The know-how was patented and broadly licensed by different corporations. It has grow to be a regular characteristic in a wide range of imaging functions.
Awards and accolades
The PV-460 gained instantaneous recognition when it debuted in June 1988. It acquired rave critiques at that yr’s Consumer Electronics Show.
Panasonic acquired a 100 Award in 1989 from R&D World journal for “the event of a VHS camcorder with an antishake mechanism.”
Oshima’s analysis paper, “VHS Camcorder With Electronic Image Stabilizer,” and others can be found within the IEEE Xplore Digital Library.
To be taught extra about historic figures in engineering, IEEE Milestones, and IEEE History Middle packages and occasions, take a look at The Institute’s IEEE Tech History collection. IEEE Spectrum additionally covers elements of tech history.
Milestone plaque show
The Milestone plaque is to be displayed on the bottom ground of the Panasonic Museum, which is open to the general public. The museum is situated close to the now-shuttered Panasonic analysis lab the place the know-how was developed. The plaque reads:
“In 1988 the pioneering PV-460 camcorder geared up with picture stabilization for enabling clean and regular video seize was launched by Panasonic. By pairing a miniaturized vibrating-structure gyroscope sensor with an optical-axis correction mechanism, the PV-460 eradicated the jitter attributable to hand movement. Broad worldwide licensing of this patented scheme made it a regular characteristic in movie and digital cameras, smartphones, and associated imaging gadgets.”
Chosen by the IEEE History Committee and endorsed by the IEEE Board of Directors, IEEE Milestones acknowledge excellent technical developments world wide which are a minimum of 25 years outdated. The Milestone program is run by the IEEE history and heritage group.
