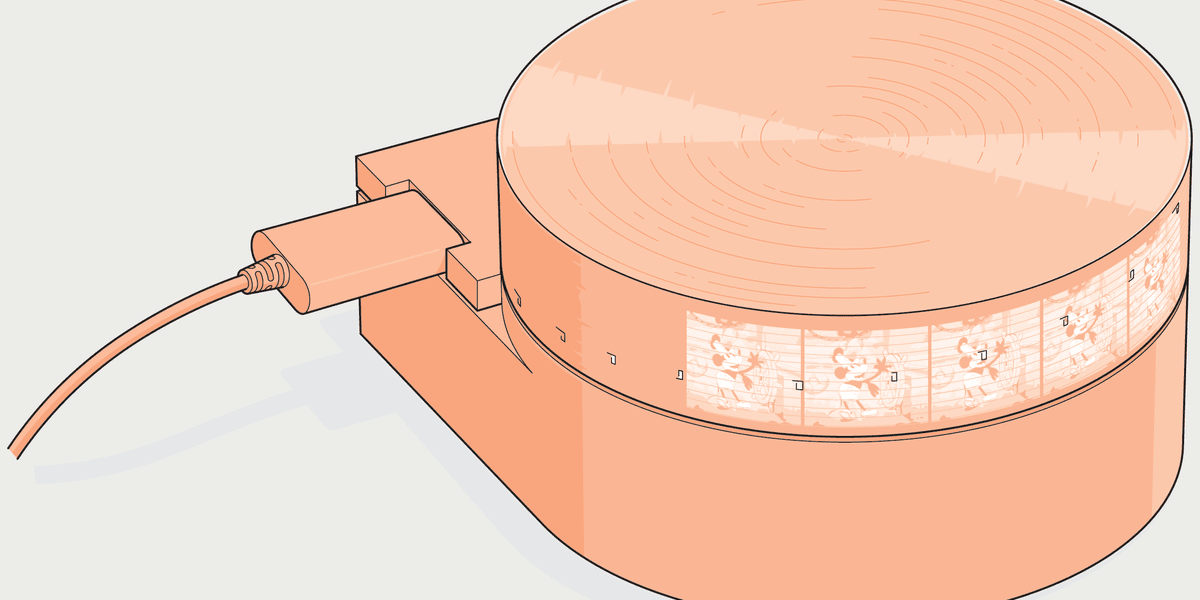

I by no means supposed to hitch the chopping fringe of electromechanical tv. I simply wished to make a pleasant clock. However generally you need to go the place the engineering takes you, and in my case it took me to the Scanwheel, a pocket-size wide-screen electromechanical TV with a decision of 4,096 by 20 pixels. Yup, that’s 4K by 20.
The 3D-printed drum [top] is spun by a motor managed by a driver board [second row, from top]. The driving force board, in flip, is managed by a Raspberry Pi Pico [middle], which additionally controls the LEDs [second row, from bottom], that are mounted within the 3D-printed casing [bottom] in order that the holes go over them because the drum turns.James Provost
Electromechanical tv was the primary type of sensible tv, developed by John Logie Baird in the 1920s. He used a so-called Nipkow disk, which has a spiral of holes punched by means of it. Because the disk rotates, the holes go one after the other in entrance of a light-weight supply. By various the brightness of the sunshine as a gap travels throughout it, you possibly can draw one scan line of a video body. Spin the disk quick sufficient, and persistence of imaginative and prescient makes it seem like a complete body is being displayed concurrently. Business electromechanical TV units have been produced within the United Kingdom, with common broadcasts offered by the BBC in the 1930s.
Though cathode-ray tubes changed electromechanical televisions within the Nineteen Forties, hobbyists have continued to construct them and even enhance on the unique know-how. For instance, within the June 2022 installment of IEEE Spectrum’s Fingers On, Markus Mierse introduced a desktop-size 3D-printed shade model.
I constructed an electromechanical show myself some years in the past, but it surely had a standard design with a Nipkow disk constituted of a vinyl document with holes drilled in it. Lately I began tinkering with electromechanical TV once more as an outgrowth of my YouTube channel. There I’ve been specializing in creating volumetric shows, which create 3D pixels floating inside a quantity of area. Specifically, I used to be occupied with borrowing some concepts from plenoptic cameras, which use pinholes and lenses to seize multidimensional light fields of samples.
I questioned if I might run the method in reverse, to create gentle fields reasonably than seize them. I typically discover concepts in two dimensions earlier than increasing to the third, so I believed I’d first display a 2D show. I made a decision to make an electromechanical gadget right into a clock. In any case, you don’t want excessive decision to show digits.
How Does the Scanwheel Show Work?
Fascinated about the show as a clockface pushed me towards some key concepts. First, as a substitute of getting only one show space, I’d use 5 gentle sources to create a number of areas—4 to signify hours and minutes, and a central space for a separator that may blink every second. Second, to align the digits in a readable row reasonably than have them unfold round an arc, I swapped the Nipkow disk for an established alternative: a Nipkow drum.
With a drum, the holes run alongside the curved cylindrical floor in a stair-step sample. This implies they at all times hint a straight line from the attitude of a viewer trying from the aspect, so the clock’s digits could be horizontally aligned.
“In exams, I’ve pushed the horizontal decision to greater than 8,000 pixels.”
These two selections turned out to be key to attaining each miniaturization and excessive horizontal decision. A disk wants a reasonably broad diameter in order that the scan traces aren’t ridiculously curved. However curvature isn’t an issue with a drum. A drum may be a lot smaller than a disk that has the identical variety of scan traces. (And in contrast to within the Twenties, packing a number of gentle sources shut collectively inside a small drum isn’t an issue with trendy LEDs.) I settled on a 6-centimeter-wide drum, turning the gadget from desktop-size to one thing you may carry in your pocket.
I then realized my 5 show zones might work in live performance to create one single broad display screen. As a result of it’s attainable to modulate the brightness of an LED at very excessive charges, the horizontal decision will also be very excessive. My system at the moment has 4K horizontal decision, and that is primarily restricted by the quantity of onboard reminiscence I’ve accessible. This reminiscence holds the buffer that shops pixel information for every body earlier than it’s learn out to the LEDs and displayed. In exams, I’ve pushed the horizontal decision to greater than 8,000 pixels.
Regardless of the Scanwheel’s low vertical decision—at 20 pixels, it has fewer scan traces than Baird’s 30-line televisions—its excessive horizontal decision makes the legibility of the show surprisingly good: I can show not simply crude digits however video streamed into the body buffer.
Utilizing the RP2040 Chip’s Particular Silicon
That body buffer lives on a Raspberry Pi Pico microcontroller board, based mostly across the RP2040 microcontroller. The RP2040 is good for this venture due to the chip’s devoted PIO silicon. PIO stands for programmable enter/output, and it’s a block of 4 coprocessors that makes use of a really restricted instruction set. Every coprocessor may be set as much as chew by means of enter/output streams fully independently of the RP2040’s two CPU cores.
The primary mechanical TVs used disks, which needed to be broad to reduce picture distortion however allowed cumbersome gentle sources. With small, trendy gentle sources, a smaller drum can create photographs with minimal distortion.James Provost
It’s due to the PIO that I’m in a position to sustain with the spinning drum and modulate every of the 5 LEDs concurrently as holes go over them, a process sophisticated by the truth that the middle LED isn’t a monochrome LED, however a shade LED with separate purple, inexperienced, and blue channels. In truth, the PIO does almost all of the work, pulling information from the body buffer and controlling the LEDs and the spinning of the drum. The code operating on the CPU (written in MicroPython) is primarily liable for organising the PIO after which leaving nicely sufficient alone.
A stepper motor linked to a driver board spins the drum, with energy offered by the USB jack on the Pi Pico. All of the Pi Pico has to do controlwise is ship the board a pulse to incrementally advance the drum’s place as soon as each millisecond. Video information is streamed into the Pi Pico through a community interface. You possibly can arrange the Scanwheel to reflect a portion of your laptop’s display screen, or to behave as a separate show.
The casing, together with the drum, is 3D printed. Now for a neat bit: Within the Scanwheel’s GitHub repository at https://github.com/AncientJames/Scanwheel/tree/main, alongside all the opposite information you’ll have to make this venture your self, there’s an OpenSCAD file that generates the 3D-print file for the drum based mostly on adjustable parameters. This implies you possibly can simply make a taller drum and add extra scan traces, or attempt different customizations in your very personal transportable electromechanical show. You possibly can even use it as a clock!
