Most haptic interfaces at the moment are restricted to easy vibrations. Whereas visible shows and audio techniques have continued to progress, these utilizing our sense of contact have largely stagnated. Now, researchers have developed a haptics system that creates extra advanced tactile feedback. Past simply buzzing, the gadget simulates sensations like pinching, stretching, and tapping for a extra real looking expertise.
“The feeling of contact is essentially the most private connection which you could have with one other particular person,” says John Rogers, a professor at Northwestern University in Evanston, Ailing., who led the undertaking. “It’s actually necessary, however it’s rather more troublesome than audio or video.”
Co-led by Rogers and Yonggang Huang, additionally a professor at Northwestern, the work is basically geared towards medical purposes. However the expertise might be utilized in a variety of makes use of, together with virtual or augmented reality and the power to really feel the feel of clothes material or different objects whereas procuring on-line. The analysis was published within the journal Science on 27 March.
A Nuanced Sense of Contact
In the present day’s haptic interfaces largely depend on vibrating actuators, that are pretty easy to assemble. “It’s an important place to begin,” says Rogers. However going past vibration may assist add the vibrancy of real-world interactions to the expertise, he provides.
These kind of interactions require more-sophisticated mechanical forces, which embrace a mixture of each regular forces directed perpendicular to the pores and skin’s floor and shear forces directed parallel to the pores and skin. Whether or not by vibration or making use of stress, forces directed vertically into the pores and skin have been the principle focus of haptic designs, in line with Rogers. However these don’t totally interact the numerous receptors embedded in our pores and skin.
The researchers aimed to construct an actuator that gives full freedom of movement, which they achieved with “very outdated physics,” Rogers says—specifically, electromagnetism. The essential design of the gadget consists of three nested copper coils and a small magnet. Working present by the coils generates a magnetic discipline that then strikes the magnet, which delivers pressure to the pores and skin.
“What we’ve put collectively is an engineering embodiment [of the physics] that gives a really compact pressure supply system and presents full programmability in course, amplitude, and temporal traits,” says Rogers. For a extra elaborate setup, the researchers additionally developed a model that makes use of a group of 4 magnets with completely different orientations of north and south poles. This creates much more advanced sensations of pinching, stretching, and twisting.
Haptics at Your Fingertips—or Anyplace

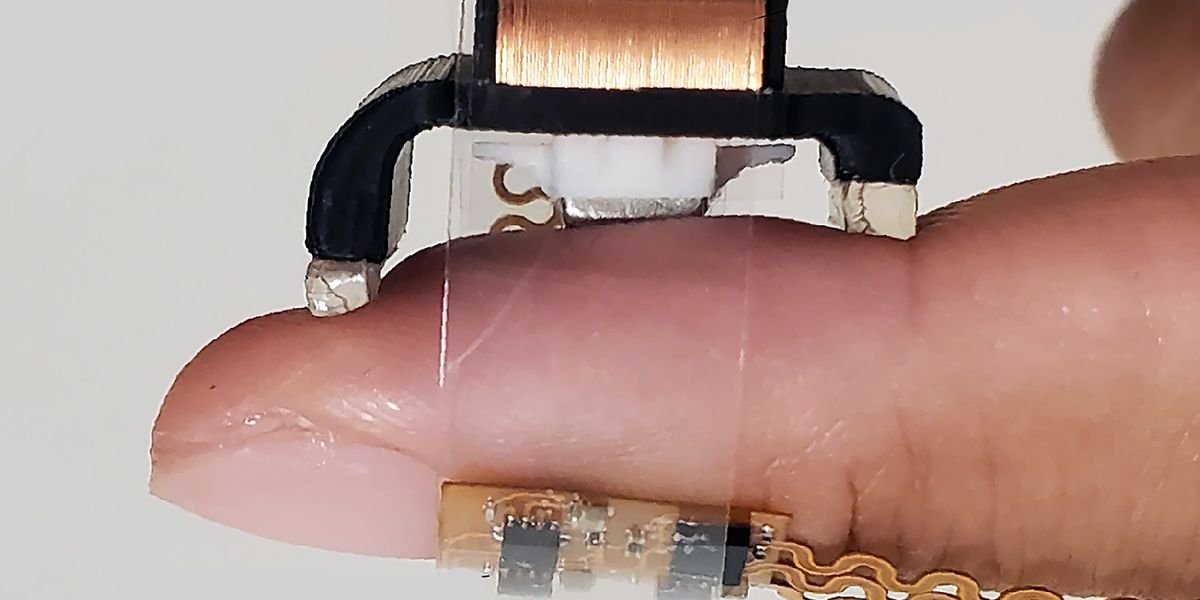

As a result of fingertips are extremely delicate, solely small forces are wanted for this software. John A. Rogers/Northwestern College
Though a lot of the earlier work in haptics has targeted on fingertips and the fingers, these units might be positioned elsewhere on the physique, together with the again, chest, or arms. Nevertheless, these purposes could have completely different necessities. In contrast with locations just like the again, the fingertips are extremely delicate—each when it comes to the pressure wanted and the spatial density of receptors.
“The fingertips are most likely essentially the most difficult when it comes to density, however they’re best when it comes to the forces that it’s worthwhile to ship,” says Rogers. In different use circumstances, delivering sufficient energy could also be a problem, he acknowledges.
The pressure potential might also be restricted by the scale of the coils, says Gregory Gerling, a systems engineering professor on the College of Virginia and former chair of the IEEE Technical Committee on Haptics. The coil dimension dictates how a lot pressure you’ll be able to generate, and at a sure level, the gadget received’t be wearable. Nevertheless, he believes it’s enough for VR purposes.
Gerling, an IEEE senior member, finds the usage of magnetism in a number of instructions attention-grabbing. In contrast with different approaches which might be based mostly on hydraulics or air stress, this method doesn’t require pumping fluids or gases. “You may be sort of untethered,” Gerling says. “General, it’s a really attention-grabbing, novel gadget, and possibly it takes the sphere in a barely new course.”
Purposes in VR, Neuropathy, and Extra
The clearest software of the gadget might be in digital or augmented reality, says Rogers. These environments now have extremely subtle audio and video inputs, “however the tactile part of that have continues to be a piece in progress,” he says.
Their lab, nonetheless, is primarily targeted on medical purposes, together with sensory substitution for sufferers who’ve misplaced sensation in part of the physique. A fancy haptics interface may reproduce the feeling in one other a part of the physique.
For instance, nerve injury in folks with diabetic neuropathy makes it troublesome for them to stroll with out their toes. The lab is experimenting with inserting an array of pressure sensors into the bottom of those sufferers’ sneakers, then reproducing the sample of stress utilizing a haptic array mounted on their higher thighs, the place they nonetheless have sensation. The researchers are working with a rehabilitation facility in Chicago to check the strategy, primarily with this inhabitants.
Persevering with to develop these medical purposes might be a spotlight transferring ahead, says Rogers. By way of engineering, he wish to additional miniaturize the actuators to make dense arrays potential in areas of the physique just like the fingertips.
Feeling the Music
Moreover, the researchers explored the potential of utilizing the gadget to extend engagement in musical performances. Aside from maybe feeling vibrations of the bass line, performances normally depend on sight and sound. Including a tactile aspect may make for a extra immersive expertise, or assist folks with hearing impairment interact with the music.
With the present tech, primary vibrating actuators can change the frequency of vibration to match the notes being performed. Whereas this could convey a easy melody, it lacks the richness of various devices and musical parts.
The researchers’ full-freedom-of-motion actuator can convey a extra vibrant sound. Voice, guitar, and drums, for example, can every be transformed right into a supply mechanism for a specific pressure. Like with vibration alone, the frequency of every pressure may be modulated to match the music. The experiment was exploratory, Rogers says, however it exploits the superior capabilities of the system.
