Lots of the world’s most superior digital techniques—together with Internet routers, wireless base stations, medical imaging scanners, and some artificial intelligence tools—depend upon field-programmable gate arrays. Computer chips with inside {hardware} circuits, the FPGAs might be reconfigured after manufacturing.
On 12 March, an IEEE Milestone plaque recognizing the primary FPGA was devoted on the Advanced Micro Devices campus in San Jose, Calif., the previous Xilinx headquarters and the birthplace of the expertise.
The FPGA earned the Milestone designation as a result of it launched iteration to semiconductor design. Engineers may redesign {hardware} repeatedly with out fabricating a brand new chip, dramatically decreasing improvement threat and enabling quicker innovation at a time when semiconductor prices have been rising quickly.
The ceremony, which was organized by the IEEE Santa Clara Valley Section, introduced collectively professionals from throughout the semiconductor industry and IEEE management. Audio system on the occasion included Stephen Trimberger, an IEEE and ACM Fellowwhose technical contributions helped shape modern FPGA architecture. Trimberger reflected on how the invention enabled software-programmable hardware.
Solving computing’s flexibility-performance tradeoff
FPGAs emerged in the 1980s to address a core limitation in computing. A microprocessor executes software program directions sequentially, making it versatile however generally too gradual for workloads requiring many operations without delay.
On the different excessive, application-specific integrated circuits are chips designed to do just one process. ASICs obtain excessive effectivity however require prolonged improvement cycles and nonrecurring engineering prices, that are massive, upfront investments. Bills embody designing the chip and making ready it for manufacturing—a course of that entails creating detailed layouts, constructing masks for the fabrication machines, and organising manufacturing traces to deal with the tiny circuits.
“ASICs can ship one of the best efficiency, however the improvement cycle is lengthy and the nonrecurring engineering price might be very excessive,” says Jason Cong, an IEEE Fellow and professor of laptop science on the University of California, Los Angeles. “FPGAs present a candy spot between processors and customized silicon.”
Cong’s foundational work in FPGA design automation and high-level synthesis reworked how reconfigurable techniques are programmed. He developed synthesis instruments that translate C/C++ into {hardware} designs, for instance.
On the coronary heart of his work is an underlying precept first espoused by electrical engineer Ross Freeman: By configuring {hardware} utilizing programmable reminiscence embedded contained in the chip, FPGAs mix hardware-level velocity with the adaptability historically related to software program.
The FPGA structure originated within the mid-Nineteen Eighties at Xilinx, a Silicon Valley firm based in 1984. The invention is broadly credited to Freeman, a Xilinx cofounder and the startup’s CTO. He envisioned a chip with circuitry that could possibly be configured after fabrication reasonably than mounted completely throughout creation.
Articles concerning the history of the FPGA emphasize that he noticed it as a deliberate break from typical chip design.
On the time, semiconductor engineers handled transistors as scarce sources. Customized chips have been rigorously optimized so that almost each transistor served a particular goal.
Freeman proposed a unique strategy. He figured Moore’s Law would quickly change chip economics. The precept holds that transistor counts roughly double each two years, making computing cheaper and extra highly effective. Freeman posited that as transistors turned considerable, flexibility would matter greater than excellent effectivity.
He envisioned a tool composed of programmable logic blocks related by way of configurable routing—a chip crammed with what he described as “open gates,” able to be outlined by customers after manufacturing. As a substitute of fixing {hardware} in silicon completely, engineers may configure and reconfigure circuits as necessities advanced.
Freeman generally in contrast the idea to a clean cassette tape: Producers would provide the medium, whereas engineers decided its operate. The analogy captured a profound shift in who controls the expertise, shifting {hardware} design flexibility from chip fabrication amenities to the system designers themselves.

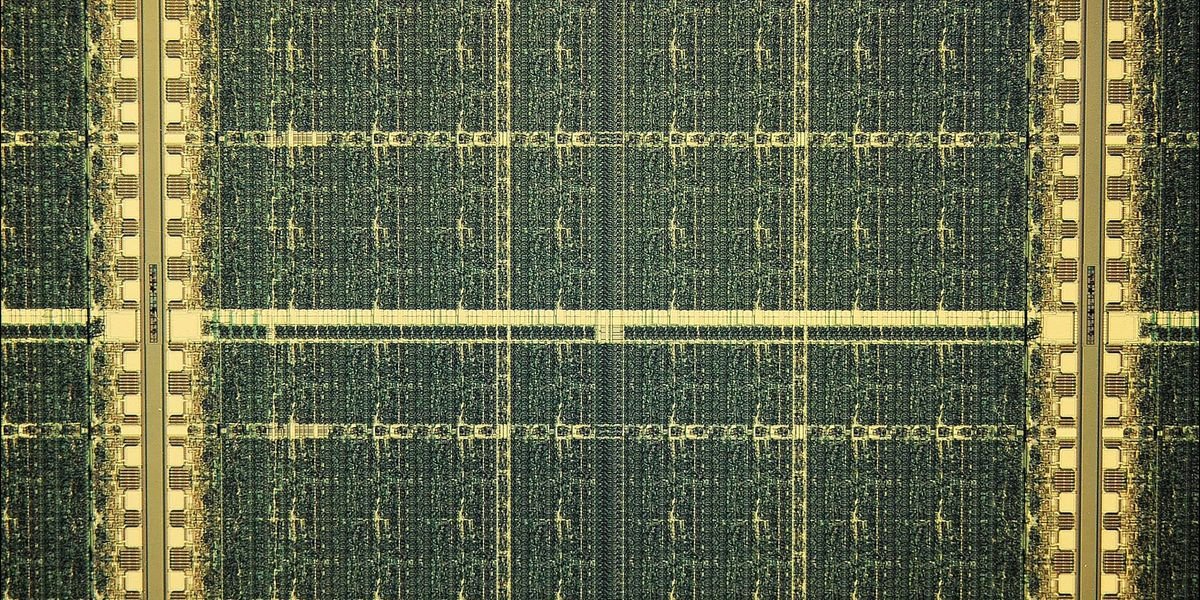

In 1985 Xilinx launched the primary FPGA for business sale: the XC2064. The gadget contained 64 configurable logic blocks—small digital circuits able to performing logical operations—organized in an 8-by-8 grid. Programmable routing channels allowed engineers to outline how indicators moved between blocks, successfully wiring a customized circuit with software program.
Fabricated utilizing a 2-micrometer course of (that means that 2 µm was the minimal measurement of the options that could possibly be patterned onto silicon utilizing photolithography), the XC2064 carried out just a few thousand logic gates. Fashionable FPGAs can comprise a whole bunch of hundreds of thousands of gates, enabling vastly extra complicated designs. But the XC2064 established a design workflow nonetheless used right this moment: Engineers describe the {hardware} conduct digitally after which “compile the design,” a course of that routinely interprets the plans into the directions the FPGA must set its logic blocks and wiring, in keeping with AMD. Engineers then load that configuration onto the chip.
The breakthrough: {hardware} outlined by reminiscence
Earlier programmable logic devices, akin to erasable programmable read-only reminiscence, or EPROM, allowed restricted customization however relied on largely mounted wiring constructions that did not scale well as circuits grew extra complicated, Cong says.
FPGAs launched programmable interconnects—networks of digital switches managed by reminiscence cells distributed throughout the chip. When powered on, the gadget hundreds a bitstream configuration file that determines how its inside circuits behave.
“As course of expertise improved and transistor counts elevated, the price of programmability turned a lot much less vital,” Cong says.
From “glue logic” to important infrastructure
“Initially, FPGAs have been used as what engineers known as glue logic,” Cong says.
Glue logic refers to easy circuits that join processors, reminiscence, and peripheral units so the system works reliably, in keeping with PC Magazine. In different phrases, it “glues” completely different parts collectively, particularly when interfaces change often.
Early adopters acknowledged the benefit of {hardware} that might adapt as requirements advanced. In “The History, Status, and Future of FPGAs,” revealed in Communications of the ACM, engineers at Xilinx and organizations akin to Bell Labs, Fairchild Semiconductor, IBM, and Sun Microsystems mentioned the earliest makes use of of FPGAs were for prototyping ASICs. In addition they used it for validating complex systems by operating their software program earlier than fabrication, permitting the businesses to deploy specialised merchandise manufactured in modest volumes.
These makes use of revealed a broader shift: {Hardware} now not wanted to stay mounted as soon as deployed.
Attendees on the Milestone plaque dedication ceremony included (seated L to R) 2025 IEEE President Kathleen Kramer, 2024 IEEE President Tom Coughlin, and Santa Clara Valley Part Milestones Chair Brian Berg.Douglas Peck/AMD
Semiconductor economics modified the equation
The rise of FPGAs intently adopted adjustments in semiconductor economics, Cong says.
Creating a customized chip requires a big upfront funding earlier than manufacturing begins. As fabrication prices elevated, merchandise needed to ship in massive portions to make ASIC improvement economically viable, in keeping with a post revealed by AnySilicon.
FPGAs allowed designers to maneuver ahead with out that bigger financial dedication.
ASIC improvement sometimes requires 18 to 24 months from conception to silicon, whereas FPGA implementations typically might be accomplished inside three to 6 months utilizing fashionable design instruments, Cong says. The shorter cycle and the flexibility to reconfigure the {hardware} enabled startups, universities, and tools producers to experiment with superior architectures that have been beforehand accessible primarily to massive chip firms.
Lookup tables and the rise of reconfigurable computing
A well-liked method for implementing mathematical capabilities in {hardware} isthe lookup table (LUT). A LUT is a small reminiscence aspect that shops the outcomes of logical operations, in keeping with “LUT-LLM: Efficient Large Language Model Inference with Memory-based Computations on FPGAs,” a paper chosen for presentation subsequent month on the thirty fourth IEEE International Symposium on Field-Programmable Custom Computing Machines (FCCM).
As a substitute of repeatedly recalculating outcomes, the chip retrieves solutions straight from reminiscence. Cong compares the strategy to consulting multiplication tables reasonably than recomputing the arithmetic every time.
Analysis led by Cong and others helped develop environment friendly strategies for mapping digital circuits onto LUT-based architectures, shaping routing and format methods utilized in fashionable units.
As transistor budgets expanded, FPGA distributors built-in reminiscence blocks, digital signal-processing items, high-speed communication interfaces, cryptographic engines, and embedded processors, remodeling the units into versatile computing platforms.
Why the gate arrays are distinct from CPUs, GPUs, and ASICs
FPGAs coexist with different processors as a result of each optimizes completely different priorities. Central processing items excel at basic computing. Graphics processing items, designed to carry out many calculations concurrently, dominate massive parallel workloads akin to AI coaching. ASICs present most effectivity when designs stay secure and manufacturing volumes are excessive.
“ASICs can ship one of the best efficiency, however the improvement cycle is lengthy, and the nonrecurring engineering price might be very excessive. FPGAs present a candy spot between processors and customized silicon.” —Jason Cong, IEEE Fellow and professor of laptop science at UCLA.
“FPGAs will not be replacements for CPUs or GPUs,” Cong says. “They complement these processors in heterogeneous computing techniques.”
Fashionable computing platforms more and more mix a number of forms of processors to stability flexibility, efficiency, and energy efficiency.
A Milestone for an thought, not only a gadget
This IEEE Milestone acknowledges greater than a profitable semiconductor product. It additionally acknowledges a shift in how engineers innovate.
Reconfigurable {hardware} permits designers to check concepts shortly, refine architectures, and deploy techniques whereas requirements and markets evolve.
“With out FPGAs,” Cong says, “the tempo of {hardware} innovation would possible be a lot slower.”
4 many years after the primary FPGA appeared, the expertise’s enduring legacy displays Freeman’s perception: {Hardware} didn’t want to stay mounted. By accepting a small quantity of unused silicon in trade for adaptability, engineers reworked chips from static merchandise into platforms for steady experimentation—turning silicon itself right into a medium engineers may rewrite.
Amongst those that attended the Milestone ceremony have been 2025 IEEE President Kathleen Kramer; 2024 IEEE President Tom Coughlin; Avery Lu, chair of the IEEE Santa Clara Valley Section; and Brian Berg, historical past and milestones chair of IEEE Region 6. They joined AMD’s chief government, Lisa Su, and Salil Raje, senior vice chairman and basic supervisor of adaptive and embedded computing at AMD.
The IEEE Milestone plaque honoring the field-programmable gate array reads:
“The FPGA is an built-in circuit with user-programmable Boolean logic capabilities and interconnects. FPGA inventor Ross Freeman cofounded Xilinx to productize his 1984 invention, and in 1985 the XC2064 was launched with 64 programmable 4-input logic capabilities. Xilinx’s FPGAs helped speed up a dramatic business shift whereby ‘fabless’ firms may use software program instruments to design {hardware} whereas participating ‘foundry’ firms to deal with the capital-intensive process of producing the software-defined {hardware}.”
Administered by the IEEE History Center and supported by donors, the IEEE Milestone program acknowledges excellent technical developments worldwide which are no less than 25 years outdated.
Take a look at Spectrum’s History of Technology channel to learn extra tales about key engineering achievements.
