In 1987, Richard Greenhill, a British photographer who was fascinated by (however had no precise coaching in) robotics, determined he needed to construct a life-size humanoid that would do helpful issues, like carrying baggage. He was working at a startup known as Intergalactic Robots, however he couldn’t persuade anybody there to construct such a machine, so he set about constructing one himself, in his attic.
To assist together with his challenge, he organized a weekly get-together of a dozen or so like-minded people. Each Wednesday evening, his spouse, Sally, would make a giant pot of spaghetti, and the group would tinker with parts scavenged from previous printers and picked up from junkyards. They known as themselves the Shadow Group. They ultimately constructed a number of completely different robots, however their predominant challenge was the two-legged Shadow Walker.
In 1987, photographer Richard Greenhill organized a weekly gathering of DIY fans to work on tasks in his attic, together with the Shadow Walker. Richard Greenhill and David Buckley
Greenhill’s buddy David Buckley, a robotics and animatronics knowledgeable he’d met at Intergalactic, sketched out a tough design based mostly on medical textbooks of human bone construction and muscle motion. The robotic’s skeleton, made from maple, was significantly simplified—just one bone within the decrease leg and a single broad toe on every foot. The ankle’s double-axis design allowed for 2 levels of motion. The knee had no complicating kneecap.
Greenhill didn’t need the robotic to make use of motors, so its motion was managed utilizing compressed air to increase and contract 28 “air-muscles”—his model of a McKibben muscle, invented within the Fifties to imitate musculature with pneumatics. The muscle tissue have been related to the bones throughout eight joints (hips, knees, ankles, toes), which offered 12 levels of freedom.

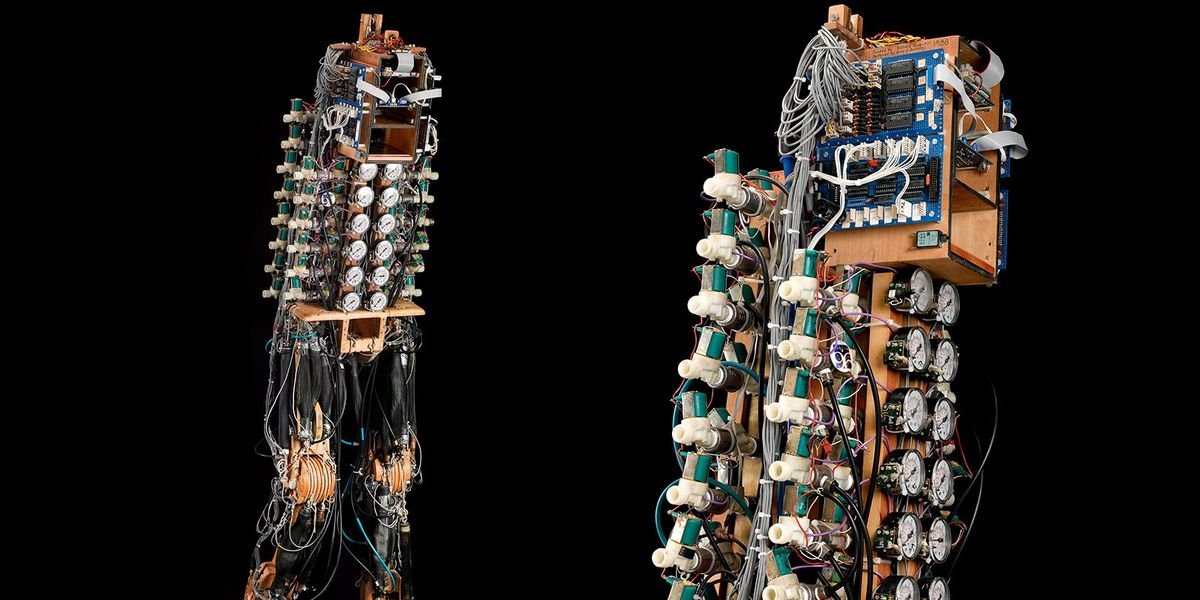

The robotic’s headless torso held the management valves, electronics, and pc interfaces. It stood 168 centimeters tall and 46 cm broad and weighed about 38 kilograms. The group managed to get the robotic to face up reliably and stability itself; it may even regain its middle if pushed somewhat. However strolling turned out to be extra of a problem.
Rich Walker joined the group as a youngster and started writing software program to get the robotic to face. He was notably curious about utilizing neural networks to unravel balancing issues, though he bumped into various {hardware} obstacles, together with the unreliability of the sensors and the valves, and the robotic’s general fragility. Over time, Walker and the staff developed a normal library of routines to regulate the robotic. Walker wrote a detailed description of the Shadow Walker in 1999, which is out there on David Buckley’s web site.
The first Worldwide Robotic Olympics
By the point the Shadow Group started creating Shadow Walker, engineers in academia and trade had been engaged on robotics for a number of a long time. The world’s first industrial robotic, the Unimate, debuted in 1961, and in 1967 Donald Michie and others started constructing a sequence of Freddy robots to research machine intelligence. The IEEE created its first devoted robotics group in 1984 when it established the IEEE Robotics and Automation Council, which grew to become the IEEE Robotics and Automation Society in 1987. Additionally in 1987, the nonprofit Worldwide Federation of Robotics was established to advertise analysis, improvement, use, and cooperation within the subject of robotics.
As Shadow Walker pushed the boundaries for a DIY humanoid robotic, industrial humanoids have been additionally gaining floor. In 1986, Honda started engaged on its experimental (E-series) and later the prototype (P-series) humanoid robots, lastly unveiling the P2 in 1996. The P2 stood 183 cm tall and weighed 210 kg. It was the primary humanoid able to secure, autonomous strolling. This work ultimately led to the event of the groundbreaking ASIMO.
Greenhill’s buddy, roboticist David Buckley, consulted medical textbooks to create Shadow Walker’s humanoid design.Richard Greenhill and David Buckley
Within the late Nineteen Eighties, the general public was each fascinated and horrified by the potential of robots. Companies noticed robots as a solution to improve productiveness, whereas staff anxious they’d take their jobs. Kids seen them as wondrous toys, whereas folks with disabilities embraced them as instruments of liberation. Army consultants hoped robots would struggle wars with out endangering human troopers, whereas politicians contemplated if robots would possibly ultimately get to vote. Philosophers thought robots may problem our notions of intelligence (and stupidity), whereas the spiritual struggled with considerations concerning the human race in a robot-dominated future.
Shadow Walker’s simplified anatomy included just one bone within the decrease leg and a single broad toe on every foot.Science Museum Group
Peter Mowforth, cofounder of the Turing Institute in Glasgow, famous these disparate visions for robots when he introduced the first Worldwide Robotic Olympics, to be held in 27 and 28 September 1990 and hosted by the Turing Institute and the College of Strathclyde. The Olympics would spherical up the world’s greatest robots and showcase them head-to-head.
Mowforth himself thought all the competing visions of robots have been overblown. Steeped in machine studying analysis and robotics improvement, he knew firsthand the restrictions of the state-of-the-art: Robots not often labored as supposed, simply broke down, and glitched over seemingly trivial issues. He envisioned the Robotic Olympics as a testbed to evaluate what the newest era of robots may and couldn’t do.
On the 1990 Robotic Olympics, held in Glasgow, Shadow Walker wore pants to hide its pneumatic “air-muscles” from rivals.Adam Hart-Davis/Science Supply
The decision for participation was broad open. As a substitute of getting predetermined classes of competitors, the organizers opted to see who utilized to compete after which group them based mostly on their claimed capabilities. Along with selecting the winners of particular person occasions, the judges would choose an general Olympic champion based mostly on the standard of the {hardware}, the sophistication of habits, and novelty. Different prizes got for younger rivals, applied sciences that confirmed business potential, and design. In the long run, greater than 50 robots have been entered, from a mixture of universities, trade, and hobbyist teams from Canada, France, India, Japan, Mexico, the Soviet Union, the USA, the UK, and Yugoslavia.
There have been loads of disappointments. Trolleyman, a golf-cart-like wheeled robotic, suffered an influence failure whereas carrying the opening Olympic torch by way of the streets of Glasgow. The pile rug within the enviornment tripped up many robots that had been skilled solely on flat, {smooth} flooring. David Buckley later concluded that the occasions have been too troublesome, and that the Olympics didn’t push improvement ahead.
In fact, there have been winners. In a shock triumph for classic know-how, the absolutely mechanical Nineteenth-century Japanese Archer from the Museum of Automata in York, England, received gold in javelin, beating out rivals greater than 100 years its junior. The general Olympic Champion was Yamabico, Shoji Suzuki’s entry from the College of Tsukuba, in Japan, which received bronze in impediment avoidance and gold in wall following, however was disqualified within the speaking class for not talking English.
The Shadow Group had excessive hopes for Shadow Walker. Sadly, although, it did not take a step, and the biped race was received by the Cardiff College Biped. Shadow Walker now resides within the collections of the Science Museum in London.
The Legacy of Shadow Walker
In 1997, a paying buyer seeking a robotic leg compelled the Shadow Group to get critical and turn into a registered firm. Shadow Robot is now Britain’s oldest robotics firm. Wealthy Walker, who had left the Shadow Group to earn a B.A. in arithmetic and a diploma in pc science on the College of Cambridge, joined Shadow Robot in 1999 as technical director. Immediately he’s the director of the corporate.
Shadow Robotic makes a speciality of sturdy robot hands moderately than strolling robots. However the concentrate on fingers can also be a legacy of the Shadow Group. Walker remembers that the Shadow Group’s first humanoid hand within the late Nineties was spectacular merely for with the ability to choose up a pint of beer (a smooth-sided, thin-walled glass). Immediately, Shadow Robotic’s fingers are testbeds for dexterity. Gone are the pneumatic muscle tissue, changed by actuators that transfer every finger with precision. The basic mannequin accommodates 20 motors, permitting for abductive and adductive motion with 24 levels of freedom.
Shadow Walker’s operator wore an information swimsuit that captured his actions and allowed the robotic to repeat them.Richard Greenhill
In a recent blog post, Sejal Parsotomo, senior advertising and marketing government at Shadow Robotic, wrote that whereas humanoid robots are nice for public relations, specialised dexterity is essential for achievement: A robotic that may stroll into your manufacturing unit could also be spectacular, however a robotic that may reliably manipulate objects is transformative.
In its struggles to take quite a lot of steps, the Shadow Walker confirmed the inherent problem that robots had in mastering even low-level abilities. In August 2025, Beijing hosted the World Humanoid Robot Games. Competing in sports activities equivalent to gymnastics, soccer, and monitor occasions, in addition to extra “helpful” duties like lodge cleansing and sorting medication, these robots may actually have run circles across the rivals within the first Robotic Olympics 35 years earlier. And but, there’s nonetheless a lot work wanted to ensure that robots to navigate the human-built surroundings. Regardless of the astonishing progress, we’re nonetheless not all that shut to truly helpful humanoid robots.
A part of a continuing series historic artifacts that embrace the boundless potential of know-how.
An abridged model of this text seems within the June 2026 print difficulty as “Studying to Stroll.”
