In trendy automated manufacturing, six-axis articulated robots carry out high-speed, multidirectional maneuvers beneath demanding operational cycles. Nonetheless, as robotic arms swivel, rotate, and prolong, {the electrical} cables, fiber optics, and pneumatic hoses supplying them endure extreme mechanical stress. Torsional twist, speedy acceleration, and repeated contact with machine buildings usually result in untimely conductor fatigue, insulation breakdown, and dear unplanned manufacturing halts.
To beat these multi-axis movement challenges, the Tsubaki KabelSchlepp Robotrax System offers a specialised three-dimensional cable service engineered particularly for advanced robotic movement.
Managing Excessive Tensile Forces With Central Metal Know-how
Typical cable carriers usually switch operational motion stress immediately onto inside electrical strains and hoses. The Robotrax system adjustments this dynamic via a central metal cable that runs via the core of each chain hyperlink.
The Robotrax system’s central metal cable absorbs the first tensile hundreds and preserves conductor integrity, dramatically extending cable service life.
When robotic arms bear speedy directional shifts and accelerations as much as 10 g, this inside metal cable absorbs the first tensile hundreds. By isolating electrical and fluid strains from pulling forces, the design preserves conductor integrity and dramatically extends cable service life. Mechanics can simply calibrate and modify system pressure utilizing an built-in clamping piece, making certain constant mechanical help all through lengthy operational cycles.
Spherical Hyperlink Design and Modular Cable Routing
The inspiration of the Robotrax system lies in its open, single-piece plastic hyperlinks that includes spherical snap-on connections on each side. This geometry permits the service to flex easily throughout three axes, offering radial rotation of as much as ±450 levels per meter relying on the mannequin measurement.
To optimize inside group, service hyperlinks comprise as much as three distinct chambers. This bodily separation prevents sign interference and mechanical abrasion between heavy power lines, delicate information channels, and fluid hoses. For normal fashions (R040 via R100), technicians can press cables immediately into the service with out instruments, drastically decreasing set up and upkeep time. Bigger configurations, such because the R140X, incorporate swiveling crossbars with snap locks alongside vertical and horizontal dividers for custom-made inside partitioning.
Energetic Retraction and Influence Safety
Giant robotic work envelopes and high-speed movement trajectories could cause unfastened cable service loops to swing and strike the robotic physique. To eradicate these harmful collisions, Tsubaki KabelSchlepp integrates the Pull Again Unit (PBU).
The PBU serves as an energetic retraction mechanism that maintains optimum pressure on the cable service all through all the movement cycle. By stopping extra slack and eliminating interfering contours, the PBU minimizes collision dangers throughout advanced motion paths. The unit requires zero upkeep on its retraction factor and gives normal mounting configurations for main industrial robot platforms, together with KUKA, ABB, and FANUC.

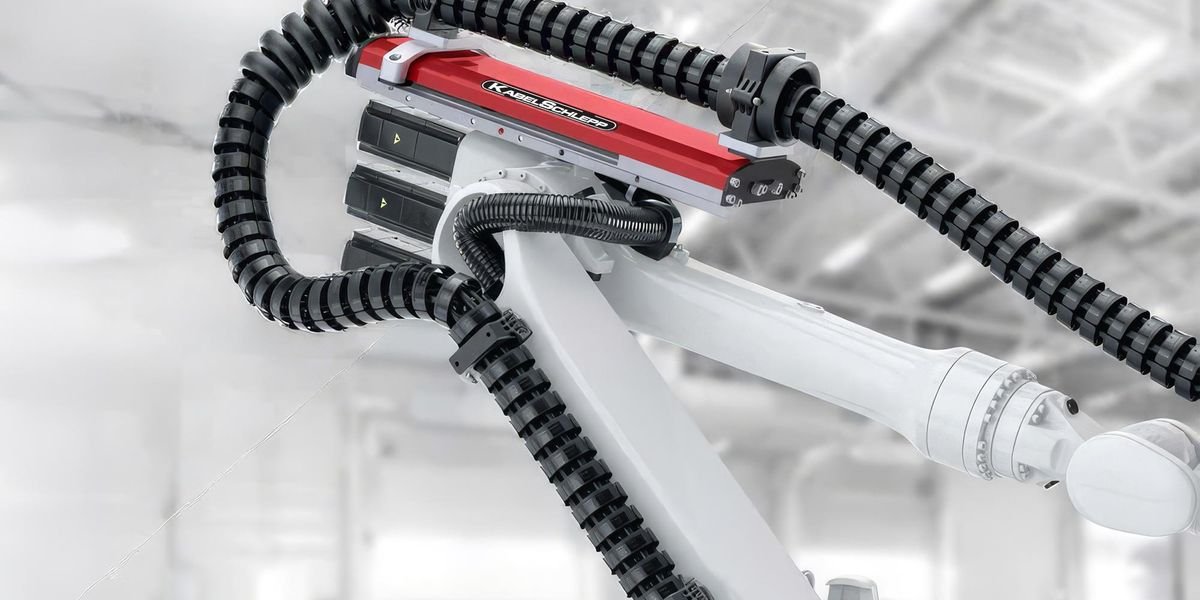

Tsubaki KabelSchlepp’s Pull Again Unit maintains optimum pressure on the cable service and minimizes collision dangers throughout advanced motion paths.
Moreover, exterior protectors may be retrofitted onto particular person chain hyperlinks. These sturdy impression shields restrict the minimal bending radius to stop over-flexing whereas shielding the chain physique from extreme exterior abrasion. If put on happens, technicians merely change the modular protector fairly than all the cable service meeting.
Constructed for Demanding Industrial Environments
From automotive welding cells to high-speed machining facilities, Robotrax programs adapt to extreme working circumstances via tailor-made protecting equipment:
- Warmth Shields: Aluminum-coated textile fiber covers shield towards radiated warmth, sizzling weld spatter, and flying sparks.
- Protecting Covers: Coated polyester sleeves protect delicate strains towards aggressive chopping fluids, hydraulic oils, paint overspray, and abrasive mud.
- LineFix Pressure Aid: Multi-layer clamping units anchor cables securely at each ends to stop axial displacement throughout intense movement.
By combining central load absorption, multi-axis flexibility, and energetic retraction management, the Robotrax system gives plant engineers and system integrators a dependable path towards maximizing robotic uptime and decreasing complete operational prices.
