What may you do should you may make a circuit hint by simply bending a bit of paper? How about bridging fashionable applied sciences and conventional handicrafts whereas offering alternatives for studying abilities in each.
As a part of our interdisciplinary analysis into digital craftsmanship on the MEI Lab at the School of Creative Media, City University of Hong Kong, we got here throughout research that demonstrated how to impregnate paperlike material (technically a “nonwoven textile”) with the type of liquid metal used to make conductive ink. Initially, the impregnated materials is nonconductive as a result of an insulating oxide layer types that encapsulates microscopic droplets of the liquid metal. Nonetheless, making use of stress by way of formed molds will crack open the insulating layer, permitting neighboring particles to merge, and thus creating conducting areas within the form of the mould.
Each of us had been launched as youngsters to origami and kirigami (much like origami, besides that chopping is allowed along with folding). We, together with our colleagues, determined to see if these conventional methods may very well be used on the brand new materials to get rid of the necessity for molds. Our purpose was to permit crafters to make hybrid papercraft creations that contained simply built-in components equivalent to LEDs and motors.
Particularly, we had been curious about the potential for combining the separate levels of making a papercraft object and including electrical conductors. Earlier approaches to creating electrified papercraft objects relied on including a separate versatile conductor—equivalent to adhesive copper tape—to the paper. This will increase the trouble required and runs the chance of making open circuits because the conductive materials conforms to the article’s form.
Isopropanol and a gallium-indium liquid materials are used to impregnate a paperlike materials that’s 55 p.c polyester and 45 p.c cellulose. Digital parts equivalent to LEDs and motors are held in place with masking tape. James Provost
Our first step was to see if the pressures concerned in bending and chopping alone could be ample to create conductive traces. We turned frequent guests to our college’s materials science and engineering division to manufacture samples after which to borrow gear to characterize their conduct.
We quickly confirmed that the pressures concerned in folding and chopping—starting from 2.5 to 100 megapascals—had been sufficient to create conductive traces. We additionally confirmed that standard dealing with of the paper didn’t by chance create conductive paths.
We made a variety of adjustments to the unique technique for creating the impregnated paper. For instance, as an alternative of immersing the paper in a mix of isopropanol and liquid metallic, we used an airbrush to spray the combination onto the paper. That allowed us to differ how a lot was deposited on the paper and to make use of cardboard stencils to masks some areas from being impregnated, permitting folding and chopping in these areas with out creating undesirable conductive traces. We additionally experimented with the ratios of isopropanol and liquid metallic.
We turned frequent guests to our college’s supplies science and engineering division.
After optimizing the blending ratios and quantity utilized by way of airbrush, we had been left with a fabric that reliably conducts with a resistance of 23.18 ohms per centimeter for lower edges and 4.4 Ω/cm for folded edges. The folded edges retain their conductivity even when later flattened out, and the conductivity is similar on both aspect of the paper. We estimate the mixed value of the paper and liquid metallic (accessible from many on-line distributors) is about US $1.80 to make a 10- by 10-cm piece.
The following step was attaching digital parts to the traces. To make the connections extra versatile, we lower down the inflexible leads of LEDs and connected conductive thread to the stumps. We then held the threads in place utilizing masking tape. Equally, we linked conductive thread to the terminals of an influence provide.
As our purpose was to make use of this materials educationally, we now wanted to make it straightforward for a newbie—whether or not in papercraft or electronics—to attempt it out. We created a toolkit, dubbed LiqMetCraft. This consists of all of the required supplies, plus a browser-based software program instrument that lets the consumer choose or create designs after which provides steerage on bodily building.

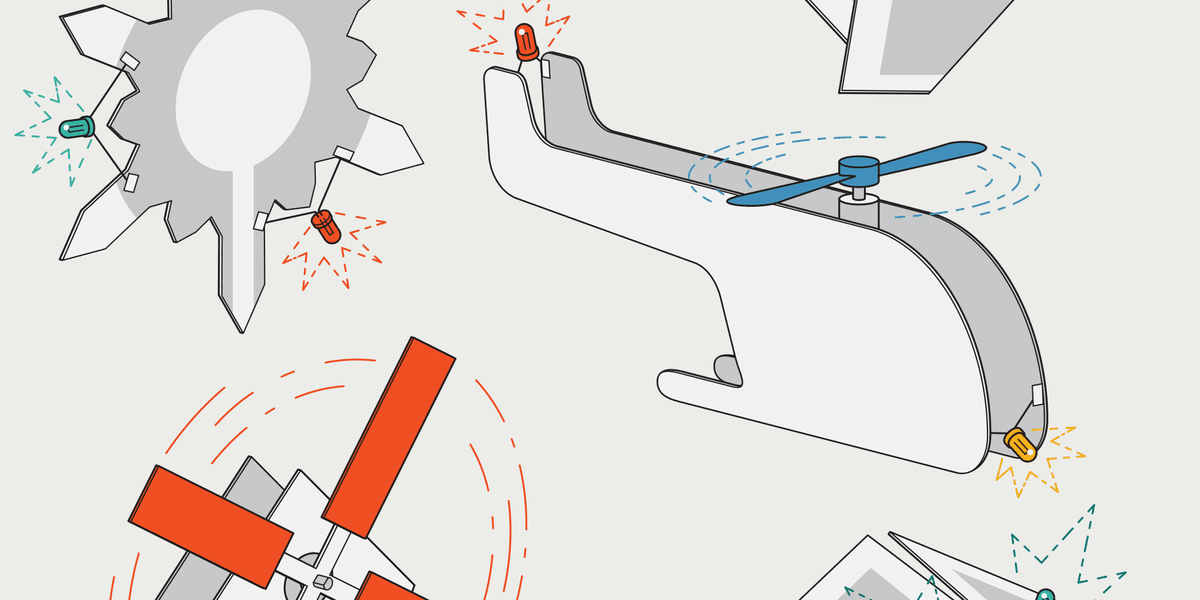

We created three variations of LiqMetCraft. The primary is predicated on Chinese language papercraft during which a bit of paper is folded right into a fanlike phase after which lower to create a radially symmetric design. We offered circles of paper with a doughnot-shape impregnated area, with an untreated area that created a niche within the donut. We connected constructive and unfavorable terminals to both aspect of the hole. The consumer may specify within the software program what number of occasions they needed to fold the disk after which draw potential cuts, receiving speedy suggestions on what the unfolded disk would seem like, in addition to steerage on the best way to place LEDs.
To make our paper pattern, isopropanol and liquid metallic are blended in particular ratios whereas being cooled by an ice tub. Sonic waves are used to make sure the liquid metallic breaks up into microscopic droplets. The combination is then utilized by way of airbrush, whereas stencils stop some areas being lined for various papercraft templates. James Provost
The second model of LiqMetCraft was primarily based on origami. We provided rectangular items of paper with two conductive areas separated by a border down the center. The software program instrument offered templates for 12 origami designs, with step-by-step directions for folding them. As soon as the challenge was accomplished, the consumer may add parts, equivalent to a motor, by taping them to the folds.
The ultimate model supported 3D paper mannequin making. On this case, the preliminary paper provided was a rectangle with an untreated rectangular central space. By chopping this paper in half after which additional chopping the halves into patterns separated by a spacer, the consumer may make varied self-standing fashions. The software program allowed the consumer to attract a sample on display, after which have a chopping machine produce a template for chopping the impregnated paper.
We had 42 members, evenly divided into three teams, check out the completely different variations. All discovered it straightforward to make use of, and we had been pleasantly shocked that some members moved past the provided designs to their very own creations.
For full particulars of the present course of, see our open access LiqMetCraft research paper printed in CHI ‘26: Proceedings of the 2026 CHI Convention on Human Factors in Computing Techniques. Sooner or later, we plan to attempt completely different substrates for the impregnating answer, in addition to discover additional sorts of papercraft, equivalent to pop-up books. We’re additionally curious about creating methods to make use of the fabric to help inputs in addition to outputs by developing switches and potentiometers straight out of the fabric. Think about conventional papercraft creations turning into interactive units!
This text seems within the July 2026 print situation.
