Within the late Nineteen Forties—when laptop engineers have been grappling with unreliable {hardware} and noisy transmission environments—a group of engineers inside a modest lab on the University of Manchester, England, confronted an issue so basic that it threatened the viability of digital computing itself. Machines might generate bits, however they may not reliably learn them again.
The inconsistent studying again of reminiscence knowledge didn’t initially current itself as a grand theoretical problem. It confirmed up as one thing extra mundane: inconsistent computing outcomes.
Engineers together with Frederic C. Williams, Tom Kilburn, and G. E. (Tommy) Thomas traced the failures to not logic errors however to the bodily conduct of the machines themselves. The group devised a way for protecting a transmitter and a receiver synchronized with out counting on a separate clock sign. Their innovation, generally known as Manchester code or part encoding, encoded every bit with a transition in the course of the bit interval, successfully embedding timing info immediately into the information stream to be a self-clocking sign. So, even when the sign degraded or the timing drifted barely, the receiver might regularly maintain time based mostly on these common transitions.
By eliminating the necessity for separate clocks and decreasing synchronization errors, Manchester code made data transfer extra strong throughout cables and circuits.
These qualities later made it a pure match for applied sciences equivalent to Ethernet and early data storage programs. Its self-clocking nature helped standardize how machines talk, and it laid the groundwork for contemporary networking and digital communication protocols.
On 13 April 2026, this breakthrough was honored with an IEEE Milestone plaque throughout a ceremony on the College of Manchester. Dignitaries from IEEE and the college attended the ceremony.
Embedding timing in indicators

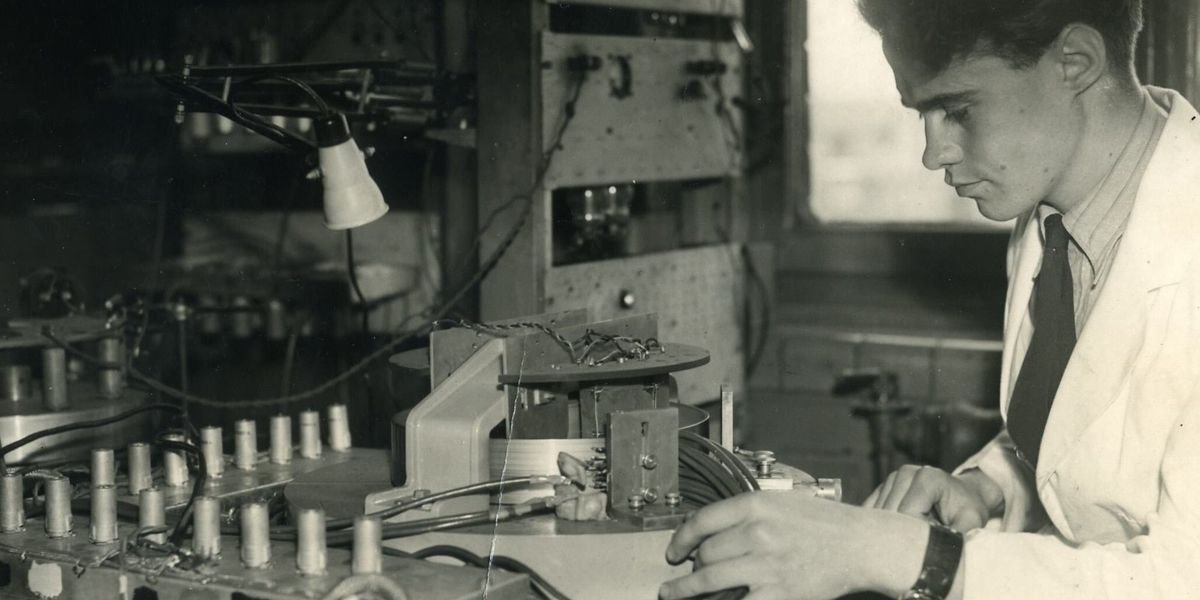

These Nineteen Forties Manchester College engineers have been engaged on programs that fed into the Manchester Mark I, one of many first sensible stored-program machines.
When troubles arose, they used oscilloscopes to probe indicators. They discovered {that electrical} pulses didn’t arrive with constant timing. Reminiscence indicators additionally blurred over time, making them more durable to learn, and when lengthy runs of equivalent bits occurred, the waveform flattened into stretches with no transitions.
That led to an important perception: The issue was not simply detecting whether or not a sign was excessive or low; the system additionally misplaced observe of when to pattern the sign. With out dependable timing markers, even accurately fashioned indicators have been misinterpret. Bits might successfully be misplaced or miscounted as a result of the system fell out of sync.
At first, the engineers tried to tame the {hardware}. They experimented with stabilizing circuits and extra constant pulse era, making an attempt to impose an everyday rhythm on an inherently unstable system. However the fixes proved fragile, and the electronics of the day couldn’t preserve the required precision. So the Manchester group took a unique method.
If the {hardware} couldn’t present a reliable clock, the sign itself must carry one. As an alternative of representing knowledge as static ranges, every bit modified state, with a assured transition within the center.
Embedding timing within the sign diminished erratic conduct. Machines have been all of the sudden in a position to reliably transmit, retailer, and skim again knowledge—a vital step towards sensible stored-program computing.
Making indicators unmistakable
The Manchester code addressed a number of points directly. Common transitions allowed steady timing restoration. Transitions proved simpler to detect than static ranges, and lengthy runs of equivalent bits not produced flat, ambiguous waveforms. Slightly than preventing the imperfections of early electronics, the design labored with them.
From lab curiosity to a worldwide commonplace
What started as a neighborhood resolution in Manchester formed digital communication programs for many years, together with early Ethernet expertise, for which timing and shared-medium communication have been central challenges.
Based on Robert Metcalfe, a member of the group that constructed the primary Ethernet system at Xerox PARC in 1973, he and his colleagues relied on Manchester code.
“Manchester code solved a basic downside for us: timing,” Metcalfe says, explaining that every bit carried its personal clock and eliminated the necessity for a worldwide synchronized sign.
That self-clocking property wasn’t the one profit supplied by the encoding scheme. On a shared coaxial cable, Manchester encoding did greater than present timing. Every transceiver left the medium undriven—successfully “off”—more often than not, permitting packets from different machines to move with out interference. Even throughout transmission, a station drove the sign solely about half the time, leaving the road undriven in the course of the different half of every bit cycle.
This distinction—between a pushed sign and an undriven line, slightly than easy 1s and 0s—allowed receivers to get better each knowledge and clock timing whereas additionally monitoring the cable for different exercise. If a transceiver detected a sign when it anticipated the road to be undriven,the sign indicated that one other station was transmitting on the similar time. In different phrases, the system might detect collisions in actual time and reply accordingly.
The thought has confirmed sturdy far past native networks. Manchester code is getting used aboard theVoyager spacecraft, which at the moment are cruising by means of interstellar house—underscoring its reliability in excessive environments.
The code additionally has discovered its manner into on a regular basis consumer electronics. Infrared distant controls for televisions and audio gear generally depend on Manchester code by means of protocols equivalent to RC-5, developed by Philips within the early Eighties. The protocol encodes instructions as timed infrared indicators transmitted by a handset’s integrated circuit and LED, permitting gadgets to reliably interpret button presses even by means of noise and sign distortion. Producers throughout Europe—and plenty of in america—adopted the method, extending Manchester code into the house.
Why the Milestone issues
An IEEE Milestone designation acknowledges applied sciences with enduring influence. Manchester code qualifies as a result of it solved a foundational timing downside at a vital second in computing history.
With no solution to embed timing within the knowledge itself, early digital programs would have remained fragile and unreliable. Manchester code helped rework them into reliable machines, and it enabled a lot of immediately’s digital communication.
“Manchester code solved a basic downside for us: timing,” —Robert Metcalfe, an Ethernet inventor
Key individuals on the plaque dedication ceremony included Tom Coughlinm 2024 IEEE president; Duncan Ivison, College of Manchester president and vice chancellor, and Nagham Saeed, chair of the IEEE U.K. and Ireland Section.
Talks by Kees Schouhamer Immink (the 2017 IEEE Medal of Honor laureate probably best known for his work that made compact discs and other high-density digital media sensible) and Peter Green (Manchester’s deputy dean for the engineering college) highlighted the code’s lasting influence on digital knowledge storage and communications.
The IEEE Milestone plaque for the Manchester code reads:
“At this website in 1948–1949, Manchester code was invented for reliably encoding digital knowledge saved on the Manchester Mark I laptop’s magnetic drum. It grew to become a regular for laptop magnetic tapes and floppy disks and was utilized in digital communications, together with the Voyager 1 and a couple of spacecraft and early Ethernet networks. It discovered extensive use in home distant controllers, radio frequency identification (RFID) tags, and plenty of management community requirements.”
Administered by the IEEE History Center and supported by donors, the Milestone program acknowledges excellent technical developments worldwide. The IEEE U.Ok. and Ireland Part sponsored the nomination.
