Bluetooth began as a easy wi-fi connection between a telephone and a headset. Since its inception, it has develop into the invisible scaffolding for music, calls, gaming, and listening to help throughout client {and professional} gadgets alike. Bluetooth’s evolution to assist extra use instances has been pushed not by a single breakthrough however by a gradual accumulation of radio improvements, codecs, transport schemes, and energy administration methods that collectively improve the consumer expertise with wi-fi audio. At the moment, a brand new architectural baseline—Bluetooth Low Vitality (LE) Audio—guarantees low-power, prime quality, and scalable audio supply to open up the usual for an excellent wider vary of functions [1][2].
Evolution of Bluetooth Radio Applied sciences
The unique Fundamental Fee (BR) radio launched with Bluetooth 1.0 in 1999 used a Gaussian frequency-shift keying (GFSK) at 1 Msym/s, hopping by means of 79 channels within the 2.4 GHz band with alternating transmission instructions in a good time-division duplex rhythm. The short-range robustness and reliability afforded by this know-how helped achieve efficiency at par with conventional cable-based gadgets.
In 2003, the Superior Audio Distribution Profile (A2DP) arrived because the enabling customary for stereo audio streaming over Bluetooth Basic, marking the know-how’s enlargement past voice into music playback. A2DP makes use of the Audio/Video Distribution Transport Protocol (AVDTP) for stream administration and mandates the Sub-Band Codec (SBC) as its baseline audio compression format. The SBC codec employs 4- or 8-band evaluation/synthesis filter banks with adaptive bit allocation, spanning bitrates from 128 to 345 kbps for stereo content material. Embedded DSP work confirmed the way to optimize SBC implementation—Weighted Overlap Add (WOLA) filter banks, fixed-point pipelines, and real-time decoding that’s audibly indistinguishable from floating level reference implementations whereas consuming fewer MIPS and milliwatts [3].
In 2004, Bluetooth 2.0 launched Enhanced Knowledge Fee (EDR) that moved payloads to π/4 DQPSK or 8 DPSK modulation to spice up gross throughput to 2–3 Mb/s, whereas retaining the GFSK for packet headers. This innovation boosted stereo streaming high quality and adoption throughout the decade.
Round 2010, Bluetooth Low Vitality (BLE) 1 M PHY know-how was launched by way of Bluetooth 4.0. This new radio know-how continued to make use of GFSK however tuned for low responsibility cycles and intermittent bursts. This elementary distinction with BR/EDR (Fundamental Fee/Enhanced Knowledge Fee) led to widespread utilization of the time period “Bluetooth Basic” for Bluetooth 1.0 to differentiate it from BLE.
Isochronous Transport Structure
In late 2016, Bluetooth 5.0 launched the LE 2M PHY, doubling the image price to 2 Msym/s. For a wholesome hyperlink margin, halving a packet’s airtime was discovered to cut back collision publicity and decrease the power delivered/bit. By 2020, Bluetooth 5.2 or Bluetooth LE Audio radically shifted the main target from steady streaming to a transport designed explicitly round deadlines. LE (Low Vitality) Audio leverages the present LE 1M and LE 2M PHYs however carries audio over isochronous channels—slots with timing commitments. The isochronous channel structure is available in two kinds. Linked Isochronous Streams (CIS) are unicast flows whose parameters (intervals, subevents, retransmissions) may be tuned to satisfy body deadlines with bounded jitter, enabling the radio to sleep predictably between bursts whereas the applying is aware of exactly when a body will arrive. A scientific assessment of BLE efficiency corroborates that output and latency in the true world are bounded as a lot by connection interval, occasion size, and retransmissions as by the uncooked image price; below the precise parameters, sooner PHYs scale back radioactive time and enhance power effectivity, whereas coded long-range modes commerce airtime for robustness in harsher channels [1].
Broadcast Isochronous Streams (BIS)—commercially branded as Auracast—prolong that scheduling to one-to-many transmissions, enabling connectionless audio supply to limitless receivers [2][7].
This distinction in structure over steady streams requires cautious number of intervals, packetization, codec forming and acceptable fashions to find out parameters that meet deadlines with out losing airtime. Markov chain analyses of CIS—validated by way of simulation—translate developer selections (intervals, subevents, retransmission counts) into quantitative predictions for packet loss price (PLR), backlog, delay, throughput, and common energy consumption. [7]
The LC3 Codec Benefit
LE Audio’s Low Complexity Communication Codec (LC3) basically shifts the bitrate-quality-complexity stability. Peer-reviewed listening exams throughout speech and music display that LC3 delivers superior perceived high quality in contrast with SBC and mSBC at roughly half the bitrate; it additionally supplies sturdy packet loss concealment and versatile body sizes, together with low-latency modes that make the encoding delay a smaller slice of the top‑to-end price range [2]. The advantages are sensible: decrease bitrate shrinks airtime, which reduces collision danger; shorter frames pair cleanly with CIS scheduling so deadlines are simpler to satisfy; the codec’s computational footprint is modest sufficient for miniature gadgets [2].
Audio Precision supplies high-performance audio analyzers, equipment, and functions which have helped engineers worldwide design, validate, characterize, and manufacture audio merchandise for over 40 years.
Listening to Aids: Energy-Constrained Wi-fi Audio
Fashionable listening to gadgets are a posh meeting of a number of microphones, digital sign processors, and miniature energy sources. Aside from Utterly-in-Canal (CIC) and Invisible-in-Canal (IIC) designs, that are so small they match totally inside the ear canal, most listening to aids incorporate two or extra microphones to assist directional processing, beamforming, and noise discount. Audio output is supplied by a single electro-acoustic transducer. The compact kind issue severely limits battery capability, making power effectivity vital.
In comparison with Bluetooth Basic (A2DP/HFP), LE Audio improves power effectivity by means of three broad mechanisms: the LC3 codec achieves equal perceived audio high quality at considerably decrease bitrates than the SBC codec utilized in Bluetooth Basic; the LE 1M and 2M PHYs scale back on-air time per packet relative to BR/EDR; and Linked Isochronous Streams (CIS) allow exact scheduling, permitting the radio to sleep between transmissions, whereas BR/EDR audio requires longer energetic radio durations.
BLE‑compliant wake‑up receivers (WuRx) monitor the air with micro/nano-watt sensitivity and set off the primary radio with packet preambles. Reported designs display sensitivity to extraordinarily weak radio indicators (all the way down to −80 dBm), with inside‑bit responsibility biking that trades latency for energy from tons of of microseconds to seconds [4]. Sleep scheduling methods primarily apply heuristics for periodic verify‑ins, occasion‑pushed wake-ups, clustering, and time division to stretch lifetime whereas assembly QoS targets [5][6].
From True Wi-fi Stereo to Coordinated Units
Bluetooth Basic’s A2DP helps solely a single audio stream. In Bluetooth Basic’s True Wi-fi Stereo (TWS) gadgets, one earbud acts as the first, receiving the stereo stream from the telephone and relaying audio to the secondary earbud—a forwarding or relay structure. The extra transmission hop provides latency to the secondary earbud, whereas growing energy consumption within the main.
LE Audio eliminates this limitation totally. The know-how’s twin CIS functionality lets the telephone ship synchronized left and proper streams on to each earbuds. This architectural shift permits unbiased CIS connections from the telephone to the left and proper earbuds or listening to aids, enabling synchronized stereo supply with out relaying.
Discovery and pairing have advanced to match multi‑system use. The Coordinated Set Identification Service (CSIS) permits two earbuds—or two listening to aids—to be found and managed as a coordinated set moderately than independently, with resolvable identifiers and set‑stage locks. Whereas peer‑reviewed empirical literature on CSIS is skinny, timing and provider synchronization principle is mature: clock‑offset estimation, jitter management, part‑locked loops, buffer alignment, and restoration methods maintain binaural timing inside tens of milliseconds for lip‑sync and spatial imaging [9].
Gaming Headsets: Low Latency With Bidirectional Stereo
Gaming represents a demanding stress take a look at for wi-fi audio. Bluetooth Basic’s Headset Profile (HSP) and Palms-Free Profile (HFP) assist bidirectional audio for voice communication however are basically restricted: they transmit solely in mono with a most sampling price of 16 kHz, proscribing each spatial audio high quality and voice constancy.
LE Audio Unicast Voice transforms this state of affairs by supporting stereo audio with sampling charges as much as 32 kHz, considerably bettering spatial audio and speech high quality for gaming whereas sustaining voice communication with different gamers. Finish‑to‑finish latency typically should keep below a number of tens of milliseconds for responsive play and coherent spatial sound. LC3’s shorter frames and decrease bitrates shrink codec delay; tuned CIS parameters protect deadlines whereas limiting retransmissions to helpful values; beamforming improves seize high quality for bidirectional voice with out ballooning computational price [2][7].
Audio Precision’s new Bluetooth® 5 module supplies an interface to audio gadgets utilizing the most recent model of the Bluetooth specification, together with LE Audio gadgets using Unicast and Auracast™. Adobe Inventory
Public Broadcast Audio: Auracast
Bluetooth Basic helps just one energetic audio connection and sometimes supplies a variety of roughly 10 meters, making it basically unsuitable for broadcast eventualities akin to lecture halls, church buildings, gyms, and airports.
LE Audio introduces the Broadcast Isochronous Stream (BIS), commercially branded as Auracast, enabling true one-to-many audio transmission. A number of listening to aids, headphones, and earbuds can obtain the identical broadcast, which can be public (e.g., airport bulletins) or personal (encrypted, non-discoverable, elective password safety). Typical Auracast ranges prolong as much as 30 meters indoors and 100 meters open air, relying on setting and configuration.
BIS’s connectionless nature scales simply to limitless receivers with out pairing overhead; isochronous supply tolerates packet loss properly by means of ahead error correction and interleaving; and the unidirectional transmission eliminates return site visitors, lowering radio congestion. Assistive listening research report that bypassing room acoustics and delivering audio straight can enhance sign‑to‑noise ratios by 15–20 dB, making bulletins understandable and lectures clearer [8].
Guaranteeing It Sounds Good in, on or Over the Listener’s Ear
LE Audio delivers the music or voice sign extra effectively than its predecessor, Bluetooth Basic. Audio engineers nonetheless must confirm their gadgets’ audio efficiency as skilled by the top consumer.
The listener’s pinna, the exterior a part of the ear, and ear canal are a vital a part of the playback system. For instance, the low-frequency response and the effectiveness of energetic noise-cancellation are extremely depending on the seal between the system and the listener’s ear canal. Equally, on-ear and over-ear headphones work together with the listener’s pinnas.

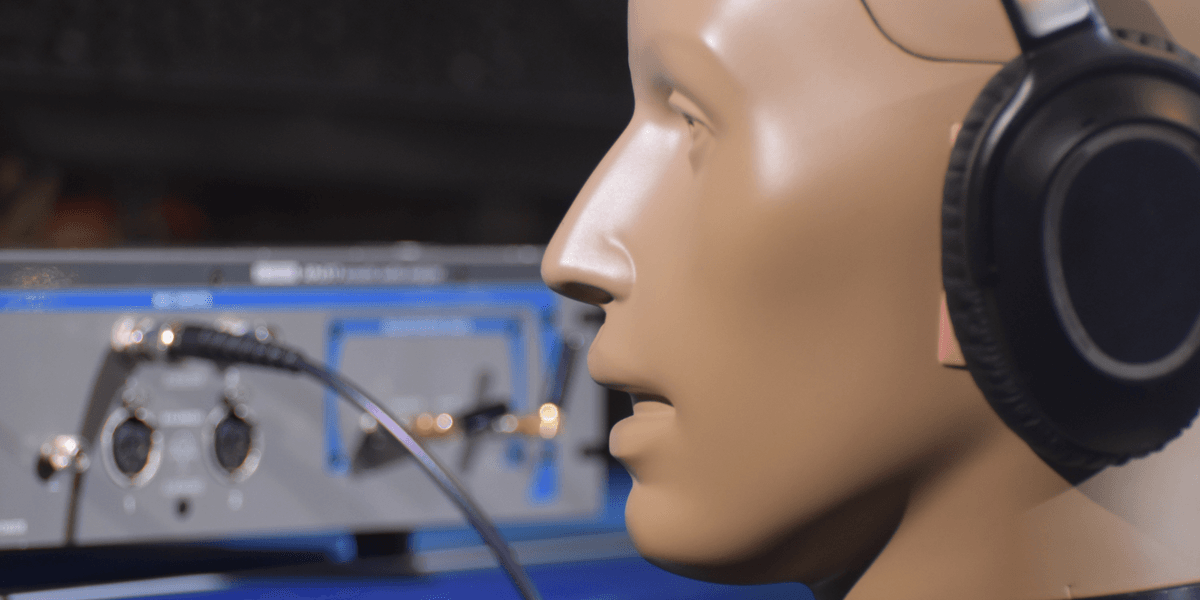

Anthropomorphic take a look at fixtures—most notably GRAS KEMAR (Knowles Electronics Manikin for Acoustic Analysis) head and torso simulators—incorporate gentle, deformable anthropomorphic pinnas that replicate life like insertion and sealing circumstances. These permit correct replication of insertion depth, sealing, low-frequency response, and ANC efficiency [10][12].
Gaming headsets each obtain and ship audio. Identical to music headphones, gaming headset testing advantages from fixtures with a human-like pinna to make sure repeatable measurement of ear-pad interplay. The headset’s microphone may be both a standard growth microphone positioned near the mouth or an array of microphones positioned farther away on the ear cups incorporating beamforming to isolate the wearer’s voice from any background noise. Check fixtures use a man-made mouth and a microphone positioned on the Mouth Reference Level (MRP) in keeping with ITU-T requirements to guage microphone efficiency below life like speech and background noise circumstances [10].
For testing of gadgets supposed as broadcast receivers, an built-in take a look at system with Auracast broadcast functionality—just like the Audio Precision Bluetooth 5 module—proves invaluable.
Conclusion
Bluetooth audio is now not outlined by a single radio or a single profile. It’s outlined by a timed pipeline—a codec that makes higher sound with fewer bits, a transport that ensures when these bits arrive, a radio that may sleep more often than not, and entrance‑finish processing that offers the codec a better job.
Listening to aids illustrate the payoff: arrays and beamformers enhance intelligibility first; LC3 compresses with low delay; CIS schedules supply; the radio sleeps; batteries final. Enhancements in different functions, akin to gaming and public broadcast, additional strengthen the case for adoption of this cutting-edge know-how.
Whereas Bluetooth audio started as a low-bandwidth, mono voice know-how over Fundamental Fee (BR) radio in 1999, greater than 25 years of evolution has produced a elementary architectural shift. LE Audio replaces steady point-to-point streams with scheduled, low-power, scalable audio supply, enabling new courses of gadgets and use instances. The requirements are prepared, and audio take a look at techniques like Audio Precision’s Bluetooth 5 module are up to date to include the brand new transmission know-how; the remaining is execution—deploying LE Audio broadly so audio turns into on the spot, clear, and inclusive [2][7].
References
[1] Tosi, J., Taffoni, F., Santacatterina, M., Sannino, R., & Formica, D. (2017). Efficiency analysis of Bluetooth Low Vitality: A scientific assessment. Sensors, 17(12), Article 2898. https://doi.org/10.3390/s17122898
[2] Schnell, M., Riedl, M., Löllmann, H., & Multrus, M. (2021). LC3 and LC3plus: The brand new audio transmission requirements for wi-fi communication. Proceedings of the AES a hundred and fiftieth Conference, On-line.
[3] Hermann, D., Herre, J., & Teichmann, R. (2004). Low-power implementation of the Bluetooth subband audio codec. Proceedings of the IEEE Worldwide Convention on Acoustics, Speech, and Sign Processing (ICASSP), Montreal, QC, Canada.
[4] Abdelhamid, M. R., Chen, R., Cho, J., Chandrakasan, A. P., & Wentzloff, D. D. (2018). A −80 dBm BLE-compliant, FSK wake-up receiver with system and within-bit duty-cycling for scalable energy and latency. Proceedings of the IEEE Customized Built-in Circuits Convention (CICC), San Diego, CA, USA.
[5] Mutar, M. S., Mohammed, A. H., & Abdulkareem, M. B. (2024). A survey of sleep scheduling methods in wi-fi sensor networks for maximizing power effectivity. AIP Convention Proceedings.
[6] Mikhaylov, Ok., & Karvonen, H. (2020). Wake-up radio enabled BLE wearables: Empirical and analytical analysis of power effectivity. Proceedings of the IEEE Worldwide Symposium on Medical Data and Communication Expertise (ISMICT).
[7] Yan, Z., Xu, H., & Shen, Z. (2024). Modeling and evaluation of the efficiency for CIS-based Bluetooth LE Audio [Preprint].
[8] Kaufmann, T. B., Weller, T., Stiefelhagen, R., & Adiloglu, Ok. (2023). Necessities for mass adoption of assistive listening know-how by most of the people. arXiv. https://arxiv.org/abs/2303.02523
[9] Nasir, A. A., Durrani, S., Mehrpouyan, H., Blostein, S. D., & Kennedy, R. A. (2015). Timing and provider synchronization in wi-fi communication techniques: A survey and classification of analysis within the final 5 years. arXiv. https://arxiv.org/abs/1507.02032
[10] Okorn, E., & Wulf-Andersen, P. (2019). Acoustic take a look at fixtures: From KEMAR and past! The Journal of the Acoustical Society of America, 146(4), 2815. https://doi.org/10.1121/1.5136656
[11] An analytical mannequin of Bluetooth efficiency contemplating bodily and link-layer results. (2021). IEEE Xplore.
[12] IEC/ITU acoustic requirements literature for headphone and earbud testing. (n.d.). Listed in The Journal of the Acoustical Society of America and AIP Convention Proceedings.
