A prototyping downside is rising in immediately’s efforts to impress all the pieces. What works as a lab-bench mockup breaks in actuality. Harnessing and safely storing power at grid scale and in automobiles, trucks, and planes is a really arduous downside that simplified fashions typically can’t contact.
“In electrification, at its core, you’ve got this mixture of electromagnetic results, heat transfer, and structural mechanics in an advanced interaction,” says Bjorn Sjodin, senior vice chairman of product administration on the Stockholm-based software program firm COMSOL.
COMSOL is an engineering R&D software program firm that seeks to simulate not only a single phenomenon—as an example, the electromagnetic habits of a circuit—however quite all the pertinent physics that must be simulated for growing new applied sciences in real-world working circumstances.
Engineers and builders gathered in Burlington, Mass. on 8-10 Oct. for COMSOL’s annual Boston conference, the place they mentioned engineering simulations by way of a number of simultaneous physics packages. And multiphysics modeling, because the rising area known as, has emerged as a part of electrification R&D that’s turning into extra than simply nice-to-have.
“Generally, I believe some folks nonetheless see simulation as a elaborate R&D factor,” says Niloofar Kamyab, a chemical engineer and functions supervisor at COMSOL. “As a result of they see it as a alternative for experiments. However no, experiments nonetheless have to be achieved, although experiments may be achieved in a extra optimized and efficient method.”
Can Multiphysics Scale Electrification?
Multiphysics, Kamyab says, can typically be solely half the sport.
“I believe in terms of batteries, there’s one other attraction in terms of simulation,” she says. “It’s multi-scale—how batteries may be studied throughout completely different scales. You will get in-depth evaluation that, if not very arduous, I’d say is not possible to do experimentally.”
Partially, it’s because batteries reveal sophisticated behaviors (and runaway reactions) on the cell degree but additionally in unpredictable new methods on the battery-pack degree as properly.
“Most people who do simulations of battery packs, thermal management is one in every of their major considerations,” Kamyab says. “You do that simulation so you know the way to keep away from it. You recreate a cell that’s malfunctioning.” She provides that multiphysics simulation of thermal runaway allows battery engineers to securely check how every design behaves in even essentially the most excessive circumstances—with the intention to cease any battery issues or fires earlier than they may occur.

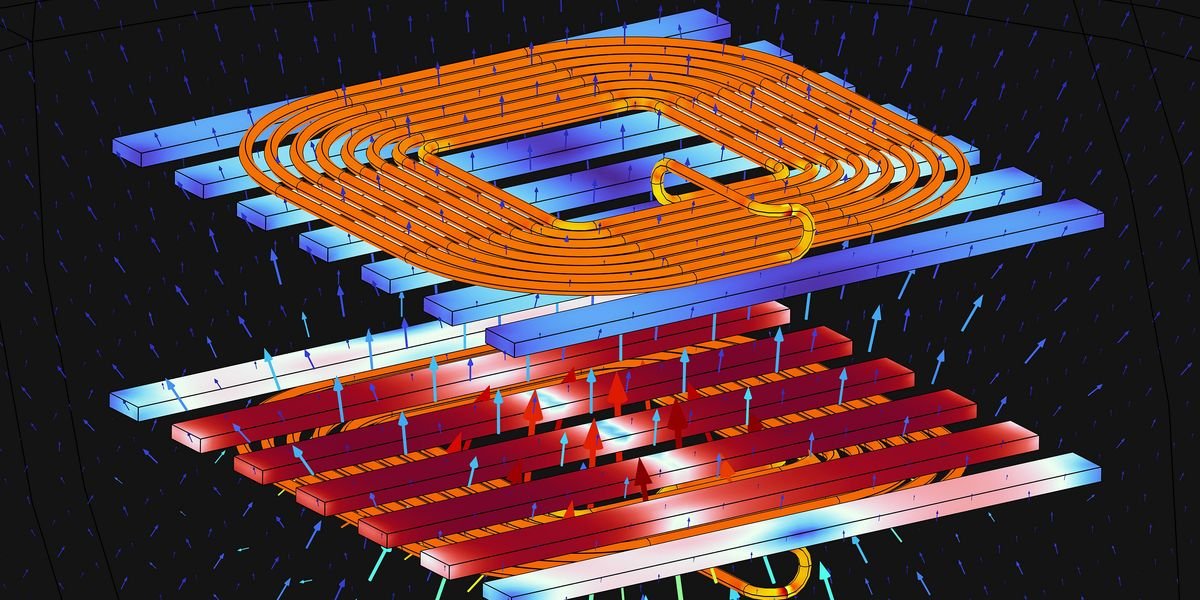

Wireless charging methods are one other space of electrification, with their very own thermal challenges. “At greater energy ranges, localized heating of the coil adjustments its conductivity,” says Nirmal Paudel, a lead engineer at Veryst Engineering, an engineering consulting agency primarily based in Needham, Mass. And that, he notes, in flip can change your entire circuit in addition to the design and efficiency of all the weather that encompass it.
Electric motors and power converters require related simulation savvy. Based on electrical engineer and COMSOL senior software engineer Vignesh Gurusamy, older methods of growing these age-old electrical workhorse applied sciences are proving much less helpful immediately. “The latest surge in electrification throughout various functions calls for a extra holistic strategy because it allows the event of recent optimum designs,” Gurusamy says.
And freight transportation: “For vehicles, individuals are investigating, Should we use batteries? Should we use fuel cells?” Sjodin says. “Gasoline cells are very multiphysics pleasant—fluid move, warmth switch, chemical reactions, and electrochemical reactions.”
Lastly, there’s the electric grid itself. “The grid is designed for a steady provide of energy,” Sjodin says. “So when you’ve got energy sources [like wind and solar] shutting on and off on a regular basis, you’ve got fully new issues.”
Multiphysics in Battery and Electric Motor Design
Taking such an all-in strategy to engineering simulations can yield unanticipated upsides as properly, says Kamyab. Berlin-based automotive engineering firm IAV, for instance, is growing powertrain methods that combine a number of battery codecs and chemistries in a single pack. “Sodium ion can not provide the power that lithium ion may give,” Kamyab says. “In order that they got here up with a mix of chemistries, to get the advantages of every, after which designed a thermal administration that matches all of the chemistries.”
Jakob Hilgert, who works as a technical marketing consultant at IAV, lately contributed to a COMSOL industry case study. In it, Hilgert described the design of a dual-chemistry battery pack that mixes sodium-ion cells with a extra expensive lithium solid-state battery.
Hilgert says that utilizing multiphysics simulation enabled the IAV crew to play the 2 chemistries’ completely different properties off of one another. “If we now have some cells that may function at excessive temperatures and a few cells that may function at low temperatures, it’s helpful to take the exhaust warmth of the higher-running cells to warmth up the lower-running cells, and vice versa,” Hilgert mentioned. “That’s why we got here up with a cooling system that shifts the power from cells that wish to be in a cooler state to cells that wish to be in a warmer state.”
Based on Sjodin, IAV is an element of a bigger pattern in a spread of industries which can be impacted by the electrification of all the pieces. “Algorithmic enhancements and {hardware} enhancements multiply collectively,” he says. “That’s the way forward for multiphysics simulation. It’s going to will let you simulate bigger and bigger, extra sensible methods.”
Based on Gurusamy, GPU accelerators and surrogate fashions permit for greater jumps in electrical motor capabilities and efficiencies. Even seemingly easy elements just like the windings of copper wire in a motor core (referred to as stators) present parameters that multiphysics can optimize.
“A major frontier in electrical motor improvement is pushing power density and effectivity to new heights, with thermal administration rising as a key problem,” Gurusamy says. “Multiphysics fashions that couple electromagnetic and thermal simulations … incorporate temperature-dependent habits in stator windings and magnetic supplies.”
Simulation can also be altering the wi-fi charging world, Paudel says. “Conventional design cycles tweak coil geometry,” he says. “Right now, built-in multiphysics platforms allow exploration of recent charging architectures,” together with versatile charging textiles and good surfaces that adapt in real-time.
And batteries, in response to Kamyab, are persevering with a push towards greater energy densities and lower cost factors. Which is altering not simply the industries the place batteries are already used, like consumer electronics and EVs. Increased-capacity batteries are additionally driving new industries like electric vertical take-off and landing aircraft (eVTOLs).
“The explanation that many concepts that we had 30 years in the past have gotten a actuality is now we now have the batteries to energy them,” Kamyab says. “That was the bottleneck for a few years. … And as we proceed to push battery know-how ahead, who is aware of what new applied sciences and functions we’re making attainable subsequent.”
