Once you hear the time period humanoid robot, you could consider C-3PO, the human-cyborg-relations android from Star Wars. C-3PO was designed to help people in speaking with robots and alien species. The droid, which first appeared on display screen in 1977, joined the characters on their adventures, strolling, speaking, and interacting with the surroundings like a human. It was forward of its time.
Earlier than the discharge of Star Wars, a couple of androids did exist and will transfer and work together with their surroundings, however none may achieve this with out shedding its steadiness.
It wasn’t till 1996 that the primary autonomous robotic able to strolling with out falling was developed in Japan. Honda’s Prototype 2 (P2) was almost 183 centimeters tall and weighed 210 kilograms. It may management its posture to keep up steadiness, and it may transfer a number of joints concurrently.
In recognition of that decades-old feat, P2 has been honored as an IEEE Milestone. The dedication ceremony is scheduled for 28 April on the Honda Collection Hall, positioned on the grounds of the Mobility Resort Motegi, in Japan. The machine is on show within the corridor’s robotics exhibit, which showcases the evolution of Honda’s humanoid expertise.
In help of the Milestone nomination, members of the IEEE Nagoya (Japan) Section wrote: “This milestone demonstrated the feasibility of humanlike locomotion in machines, setting a brand new normal in robotics.” The Milestone proposal is accessible on the Engineering Technology and History Wiki.
Creating a home android
In 1986 Honda researchers Kazuo Hirai, Masato Hirose, Yuji Haikawa, and Toru Takenaka got down to develop what they referred to as a “home robotic” to collaborate with people. It might have the ability to climb stairs, take away impediments in its path, and tighten a nut with a wrench, based on their research paper on the project.
“We imagine {that a} robotic working inside a household is the kind of robotic that buyers might discover helpful,” the authors wrote.
However to create a machine that might do family chores, it had to have the ability to transfer round obstacles comparable to furnishings, stairs, and doorways. It wanted to autonomously stroll and skim its surroundings like a human, based on the researchers.
However no robotic may do this on the time. The closest technologists obtained was the WABOT-1. Inbuilt 1973 at Waseda University, in Tokyo, the WABOT had eyes and ears, may converse Japanese, and used tactile sensors embedded on its arms because it gripped and moved objects. Though the WABOT may stroll, albeit unsteadily, it couldn’t maneuver round obstacles or preserve its steadiness. It was powered by an exterior battery and laptop.
To construct an android, the Honda group started by analyzing how folks transfer, utilizing themselves as fashions.
That led to specs for the robotic that gave it humanlike dimensions, together with the placement of the leg joints and the way far the legs may rotate.
As soon as they started constructing the machine, although, the engineers discovered it tough to fulfill each specification. Changes had been made to the variety of joints within the robotic’s hips, knees, and ankles, based on the analysis paper. People have 4 hip, two knee, and three ankle joints; P2’s predecessor had three hip, one knee, and two ankle joints. The arms had been handled equally. A human’s 4 shoulder and three elbow joints grew to become three shoulder joints and one elbow joint within the robotic.
The researchers put in current Honda motors and hydraulics within the hips, knees, and ankles to allow the robotic to stroll. Every joint was operated by a DC motor with a harmonic-drive discount gear system, which is compact and provided excessive torque capability.
To check their concepts, the engineers constructed what they referred to as E0. The robotic, which was only a pair of related legs, efficiently walked. It took about 15 seconds to take every step, nevertheless, and it moved utilizing static strolling in a straight line, based on a post about the project on Honda’s web site. (Static strolling is when the physique’s middle of mass is all the time throughout the foot’s sole. People stroll with their middle of mass beneath their navel.)
The researchers created a number of algorithms to allow the robotic to stroll like a human, based on the Honda web site. The codes allowed the robotic to make use of a locomotion mechanism, dynamic walking, whereby the robotic stays upright by continuously transferring and adjusting its steadiness, moderately than protecting its middle of mass over its ft, based on a video on the YouTube channel Everything About Robotics Explained.
“P2 was not only a technical achievement; it was a catalyst that propelled the sphere of humanoid robotics ahead, demonstrating the potential for robots to work together with and help people in significant methods.” —IEEE Nagoya Part
The Honda group put in rubber brushes on the underside of the machine’s ft to cut back vibrations from the touchdown impacts (the drive skilled when its ft contact the bottom)—which had made the robotic lose its steadiness.
Between 1987 and 1991, three extra prototypes (E1, E2, and E3) had been constructed, every testing a brand new algorithm. E3 was successful.
With the dynamic strolling mechanism full, the researchers continued their quest to make the robotic secure. The group added 6-axis sensors to detect the drive at which the bottom pushed again towards the robotic’s ft and the actions of every foot and ankle, permitting the robotic to regulate its gait in actual time for stability.
The group additionally developed a posture-stabilizing management system to assist the robotic keep upright. A neighborhood controller directed how the electric motor actuators wanted to maneuver so the robotic may observe the leg joint angles when strolling, based on the analysis paper.
Throughout the subsequent three years, the group examined the techniques and constructed three extra prototypes (E4, E5, and E6), which had boxlike torsos atop the legs.
In 1993 the group was lastly able to construct an android with arms and a head that seemed extra like C-3PO, dubbed Prototype 1 (P1). As a result of the machine was meant to assist folks at residence, the researchers decided its peak and limb proportions based mostly on the everyday measurements of doorways and stairs. The arm size was based mostly on the flexibility of the robotic to choose up an object when squatting.
After they completed constructing P1, it was 191.5 cm tall, weighed 175 kg, and used an exterior energy supply and laptop. It may flip a swap on and off, seize a doorknob, and carry a 70 kg object.
P1 was not launched publicly however as a substitute used to conduct analysis on easy methods to additional enhance the design. The engineers checked out easy methods to set up an inside energy supply and laptop, for instance, in addition to easy methods to coordinate the motion of the legs and arms, based on Honda.
For P2, 4 video cameras had been put in in its head—two for imaginative and prescient processing and the opposite two for distant operation. The pinnacle was 60 cm large and related to the torso, which was 75.6 cm deep.
A pc with 4 microSparc II processors working a real-time operating system was added into the robotic’s torso. The processors had been used to regulate the arms, legs, joints, and vision-processing cameras.
Additionally throughout the physique had been DC servo amplifiers, a 20-kg nickel-zinc battery, and a wi-fi Ethernet modem, based on the analysis paper. The battery lasted for about quarter-hour; the machine additionally could possibly be charged by an exterior energy provide.
The {hardware} was enclosed in white-and-gray casing.

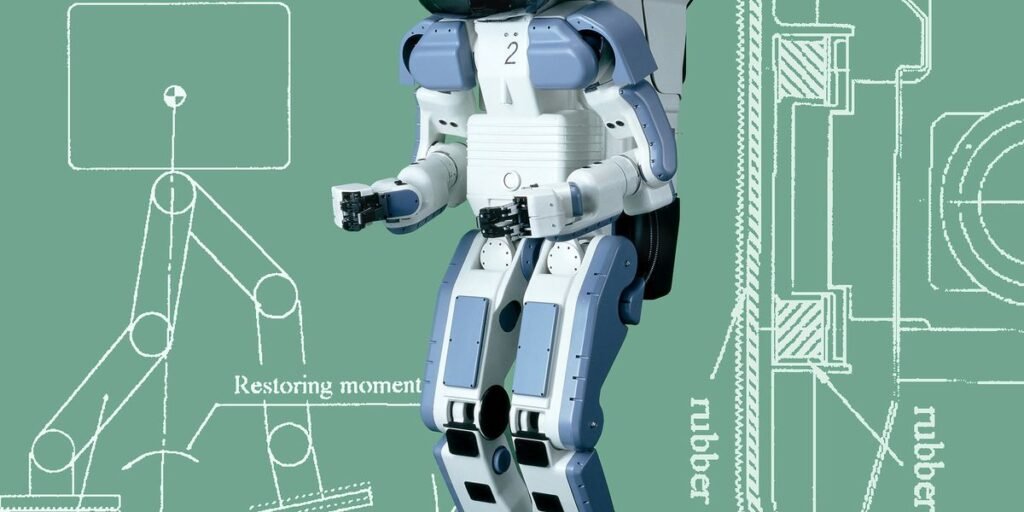

P2, which was launched publicly in 1996, may stroll freely, climb up and down stairs, push carts, and carry out some actions wirelessly.
P2, which was launched publicly in 1996, may stroll freely, climb up and down stairs, push carts, and carry out some actions wirelessly.King Rose Archives
The next 12 months, Honda’s engineers launched the smaller and lighter P3. It was 160 cm tall and weighed 130 kg.
In 2000 the favored ASIMO robot was launched. Though shorter than its predecessors at 130 cm, it may stroll, run, climb stairs, and acknowledge voices and faces. The most recent version was launched in 2011. Honda has retired the robotic.
Honda P2’s affect
Due to P2, at present’s androids usually are not simply concepts in a laboratory. Robots have been deployed to work in factories and, more and more, at home.
The machines are even getting used for leisure. Throughout this 12 months’s Spring Festival gala in Beijing, machines developed by Chinese language startups Unitree Robotics, Galbot, Noetix, and MagicLab performed synchronized dances, martial arts, and backflips alongside human performers.
“P2’s growth shifted the main target of robotics from industrial functions to human-centric designs,” the Milestone sponsors defined within the wiki entry. “It impressed subsequent developments in humanoid robots and influenced analysis in fields like biomechanics and artificial intelligence.
“It was not only a technical achievement; it was a catalyst that propelled the sphere of humanoid robotics ahead, demonstrating the potential for robots to work together with and help people in significant methods.”
To study extra about robots, take a look at IEEE Spectrum’s guide.
A plaque recognizing Honda’s P2 robotic as an IEEE Milestone is to be put in on the Honda Collection Hall. The plaque is to learn:
In 1996 Prototype 2 (P2), a self-contained autonomous bipedal humanoid robotic able to secure dynamic strolling and stair-climbing, was launched by Honda. Its legged robotics integrated real-time posture management, dynamic steadiness, gait era, and multijoint coordination. Honda’s mechatronics and management algorithms set technical benchmarks in mobility, autonomy, and human-robot interplay. P2 impressed new analysis in humanoid robotic growth, resulting in more and more refined successors.
Administered by the IEEE History Center and supported by donors, the Milestone program acknowledges excellent technical developments world wide.
