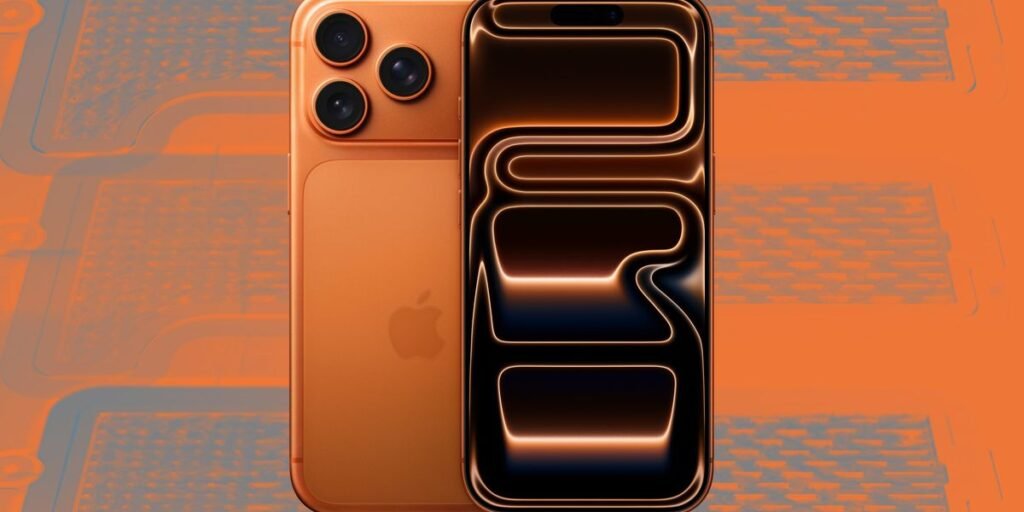

On 9 September, Apple launched its latest lineup, together with the iPhone 17 series. A lot of the eye went to a brand new ultrathin mannequin and a vibrant orange colour choice (a shade not dissimilar to that of the IEEE Spectrum emblem). The brand new smartphones will even ship with the newest operating system and its “Liquid Glass” software program design—however the liquid in these telephones goes past software program.
The iPhone 17 Pro and iPhone 17 Pro Max include skinny, hermetically sealed chambers with a drop of water inside that cycles between liquid and fuel to assist dissipate warmth. Often called vapor chambers, the cooling system is changing into extra frequent in smartphones constructed for sustained excessive efficiency. Some high-end Samsung Galaxy and Google Pixel fashions, amongst others, have launched vapor-chamber cooling up to now few years. Now, Apple is following their lead.
“Cooling of smaller portables like telephones should concentrate on spreading warmth as extensively as potential to the floor of the gadget, with explicit consideration to heat-generating parts, just like the chip,” says Kenneth Goodson, a professor of mechanical engineering at Stanford who makes a speciality of heat transfer and vitality conversion. To chill down these scorching spots, the business appears to be transferring towards vapor chambers and different phase-change know-how.
How vapor chambers hold telephones cool
The usual method to cooling smartphones makes use of a strong, extremely conductive plate comprised of a cloth like copper to unfold warmth. This method depends on having a floor the place warmth can unfold. Typically, fins are added to increase that floor, however this could result in a thicker gadget. Most firms, nevertheless, are intent on making thinner and thinner telephones.
Part-change know-how—which has been utilized in laptops for many years, Goodson notes—achieves the identical purpose extra successfully with fluid that boils and condenses to dissipate warmth. These two-phase options embrace vapor chambers, like these used within the new iPhone, in addition to slender, fingerlike constructions known as heat pipes.
Telephones have restricted quantity to work with, and “efficiency per quantity is important,” says Victor Chiriac, the CEO and cofounder of International Cooling Expertise Group, primarily based in Phoenix. Skinny and huge vapor chambers have a excessive heat-removal capability and supply an efficient answer. The cycle between liquid and vapor is “a strong mechanism for absorbing warmth,” he says.
Apple’s vapor chamber effectively spreads warmth throughout the cellphone’s physique.Apple
In Apple’s model, a small quantity of deionized water is sealed within the chamber. The water evaporates when close to warmth sources, then condenses again right into a liquid when the warmth dissipates into the cellphone’s surrounding aluminum physique. Water is commonly utilized in vapor chambers, although generally different supplies are blended in to forestall it from freezing and cracking the seal, Chiriac says.
Vapor-chamber manufacturing faces challenges
As Apple, Samsung, and others push the boundaries of how skinny telephones can get, manufacturing vapor chambers might change into a problem. Whereas strong supplies can simply be shaved down, these chambers have to have sufficient house for coolant to journey by way of channels. The chambers should be completely sealed to be able to work correctly, and “the thinner you make it, the much less house you’ve for that secret sauce to do its factor,” Chiriac says.
It comes right down to physics: “An enormous problem in small units like telephones is that as you scale down the thickness of a vapor chamber, the fluid physics aggressively reduce their efficiency relative to copper and different strong warmth conductors,” Goodson explains. (It is a drawback that researchers, together with his students, are working to handle with new microstructures.) Plus, vapor chambers are typically costly to fabricate.
Nonetheless, Apple and different firms have determined to take a position on this know-how for his or her strongest cellphone fashions. Goodson suspects a part of that call is to leverage the “wow” issue. However, he says, “with time this method will possible change into an business normal.”
