Charging an EV at house doesn’t seem to be an inconvenience—till you end up dragging a twine round a storage or down a wet driveway, then unplugging and coiling it again up each time you drive the youngsters to high school or run an errand. For elderly or disabled drivers, these cumbersome cords can be a physical challenge.
Because it was for smartphones years in the past, wireless EV charging has been the dream. However there’s a distinction of practically 4 orders of magnitude between the roughly 14 watt-hours of a typical smartphone battery and that of a giant EV. That’s what makes the wireless charging on the 108-kilowatt-hour pack within the forthcoming Porsche Cayenne Electrical so notable.
To supply the primary inductive charger on a manufacturing automobile, Porsche needed to overcome each technical and sensible challenges—equivalent to the right way to shield a beloved housecat prowling under your automobile. The German automaker demonstrated the system at September’s IAA Mobility present in Munich.
With its 800-volt architecture, the Cayenne Electrical can cost at as much as 400 kW at a public DC station, sufficient to fill its pack from 10 to 80 % in about 16 minutes. The wi-fi system delivers about 11 kW for Stage 2 charging at house, the place Porsche says three out of 4 of its clients do practically all their fill-ups. Pull the Cayenne right into a storage and align it over a floor-mounted plate, and the SUV will cost from 10 to 80 % in about 7.5 hours. No plugs, tangled cords, or soiled palms. Porsche will supply a single-phase, 48-ampere model for the United States after consumers see their first Cayennes in mid-2026, and a three-phase, 16-A system in Europe.
Porsche’s Wi-fi Charging is Based mostly on an Outdated Idea
The idea of inductive charging has been round for greater than a century. Two coils of copper wire are positioned close to each other. A present flowing by one coil creates a magnetic area, which induces voltage within the second coil.

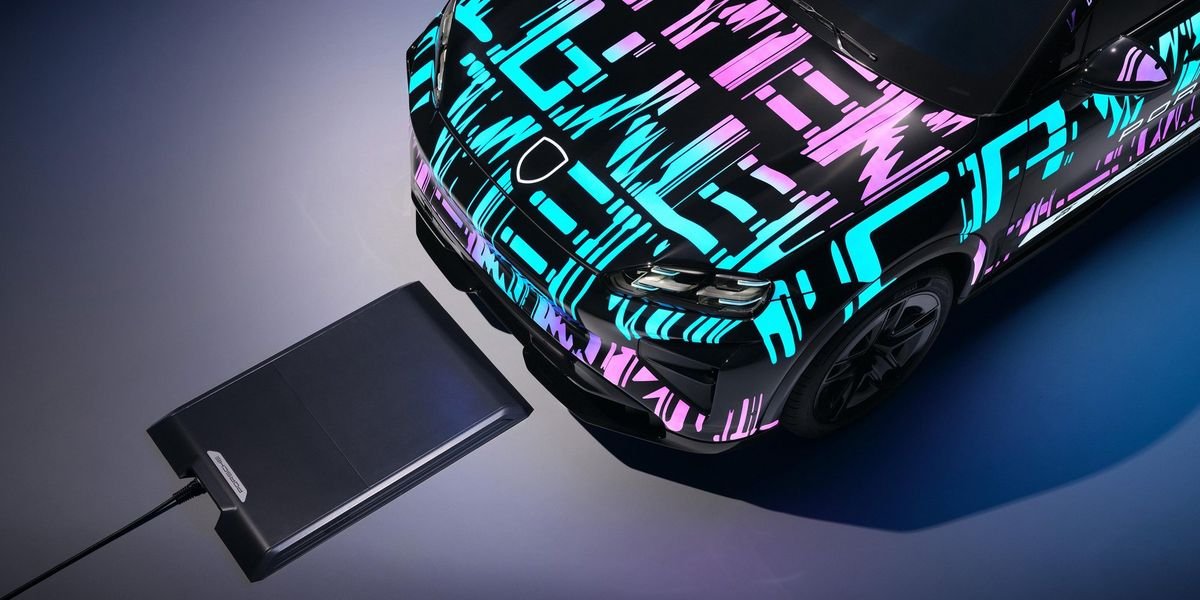

Within the Porsche system, the floor-mounted pad, 78 centimeters large, plugs into the house’s electrical panel. Contained in the pad, which weighs 50 kilograms, grid electrical energy (at 60 hertz in america, 50 Hz in a lot of the remainder of the world) is transformed to DC after which to high-frequency AC at 2,000 V.The ensuing 85-kilohertz magnetic area extends from the pad to the Cayenne, the place it’s transformed once more to DC voltage.
The waterproof pad can be positioned outside, and the corporate says it’s unaffected by leaves, snow, and the like. In actual fact, the air-cooled pad can get heat sufficient to soften any snow, reaching temperatures as excessive as 50 °C.
The Cayenne’s onboard charging {hardware} mounts between its entrance electric motor and battery. The 15-kg induction unit wires instantly into the battery.
In most EVs, plug-in (conductive) AC charging tops out at around 95 percent effectivity. Porsche says its wi-fi system delivers 90 % effectivity, regardless of an air hole of roughly 12 to 18 cm between the pad and automobile.
Final 12 months, Oak Ridge National Laboratory transferred a powerful 270 kilowatts to a Porsche Taycan with 95 % effectivity.
“We’re tremendous proud that we’re slightly below conductive AC in charging effectivity,” says Simon Schulze, Porsche’s product supervisor for charging {hardware}. Porsche additionally beats inductive telephone chargers, which usually max out at about 70 % effectivity, Schulze says.
When the automobile will get inside 7.5 meters of the charging pad, the Cayenne’s screen-based parking-assist system activates robotically. Then comes a sort of online game that requires the motive force to align a pair of inexperienced circles on-screen, one representing the automobile, the opposite the pad. It’s like a digital model of the tennis ball some individuals grasp of their storage to gauge parking distance. There’s ample wiggle room, with tolerances of 20 cm left to proper, and 15 cm fore and aft. “You’ll be able to’t miss it,” in line with Schulze.
Induction loops detect any objects between the charging plate and the automobile; such objects, in the event that they’re steel, may warmth up dangerously. Radar sensors detect any residing issues close to the pad, and can halt the charging if vital. Folks can stroll close to the automobile or hop aboard with out affecting a charging session.
Christian Holler, Porsche’s head of charging techniques, says the system conforms to Worldwide Fee on Non-Ionizing Radiation Safety requirements for electromagnetic radiation. The sector stays under 15 microteslas, so it’s protected for people with pacemakers, Porsche insists. And the aforementioned cat wouldn’t be harmed even when it strayed into the magnetic area, although “its steel collar may get heat,” Schulze says.
The Porsche system’s 90 % effectivity is spectacular however not record-setting. Final 12 months, Oak Ridge Nationwide Laboratory (ORNL) transferred 270 kW to a Porsche Taycan with 95 % effectivity, boosting its state of cost by 50 % in 10 minutes. That world-record wireless rate relied on polyphase windings for coils, a part of a U.S. Department of Energy challenge that was backed by Volkswagen, Porsche’s dad or mum firm.
That effort, Holler says, spawned a Ph.D. paper from VW engineer Andrew Foote. But the challenge had completely different objectives from the one which led to the Cayenne charging system. ORNL was centered on most energy switch, no matter value, manufacturing feasibility, or reliability, he says.
In contrast, designing a system for showroom automobiles “requires a very completely different degree of high quality and processes,” Holler says.
Excessive Value Might Restrict Adoption
Cayenne consumers in Europe pays round €7,000 (roughly US $8,100) for the non-compulsory charger. Porsche has but to cost it for america.
Loren McDonald, chief government of Chargeonomics, an EV-charging evaluation agency, mentioned wi-fi charging “is clearly the long run,” with use instances equivalent to driverless robotaxis, curbside charging, or at any web site “the place charging cables could be an annoyance or perhaps a security problem.”
However for now, inductive charging’s expensive, low-volume standing will restrict it to area of interest fashions and high-income adopters, McDonald says. Public adoption will likely be important “in order that drivers can convenience-charge all through their driving day—which then will increase the advantages of spending more cash on the system.”
Porsche acknowledges that problem; the system conforms to wi-fi requirements set by the Society of Automotive Engineers in order that different automakers may assist popularize the know-how.
“We didn’t need this to be proprietary, a Porsche-only answer,” Schulze says. “We solely profit if different manufacturers use it.”
