As electronics demand larger energy density, one element has proved difficult to shrink: the capacitor. Making a smaller capacitor often requires thinning the dielectric layer or electrode floor space, which has typically resulted in a discount of energy. A brand new polymer materials may assist change that.
In a research revealed 18 February in Nature, a Pennsylvania State College-led workforce reported a capacitor crafted from a polymer mix that may function at temperatures as much as 250 °C whereas storing roughly 4 instances as a lot power as typical polymer capacitors. As we speak’s superior polymer capacitors usually perform solely as much as about 100 °C, which means engineers typically depend on cumbersome cooling techniques in high-power electronics. The analysis workforce has filed a patent for the polymer capacitors and plans to carry them to market.
Capacitors ship fast bursts of power and stabilize voltage in circuits, making them important in functions starting from electric vehicles and aerospace electronics to power-grid infrastructure and AI data centers. But whereas transistors have steadily shrunk with advances in semiconductor manufacturing, passive components similar to capacitors and inductors haven’t scaled on the identical tempo.
“Capacitors can account for 30 to 40 % of the amount in some power electronics techniques,” says Qiming Zhang, an electrical engineering researcher at Penn State and research writer, explaining why it’s necessary to make smaller capacitors.
A plastics mix extra highly effective than its components

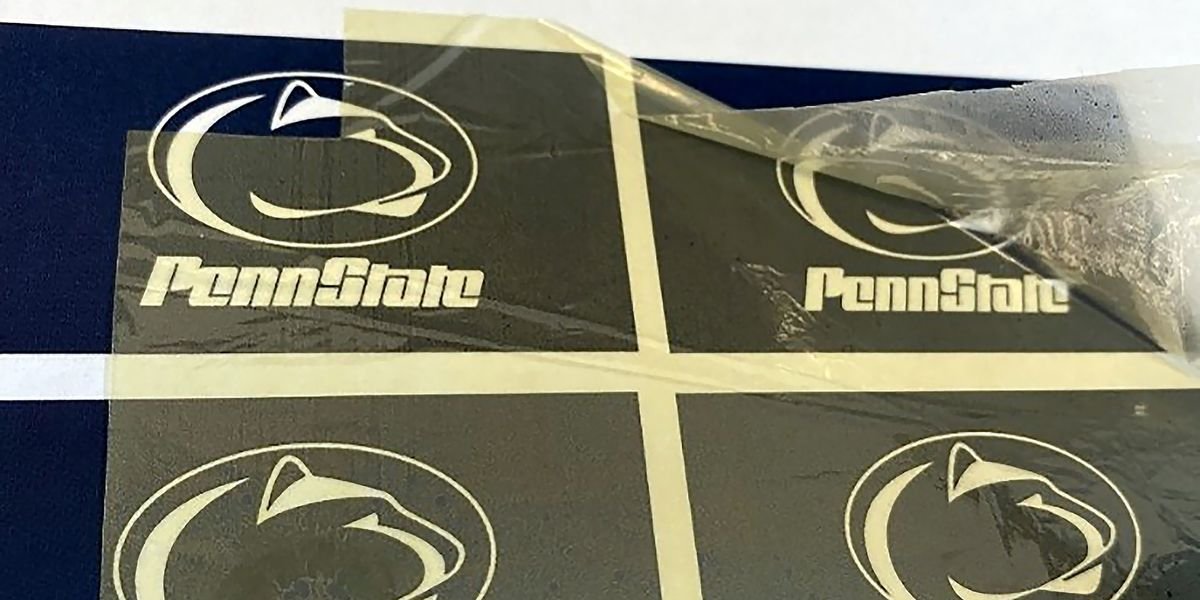

The analysis workforce mixed two commercially out there engineered plastics: polyetherimide (PEI), initially developed by General Electric and broadly utilized in industrial tools, and PBPDA, recognized for robust warmth resistance and electrical insulation. When processed collectively beneath managed circumstances, the polymers self-assemble into nanoscale constructions that type skinny dielectric movies inside capacitors. These constructions assist suppress electrical leakage whereas permitting the fabric to polarize strongly in an electric field, permitting better energy storage.
The ensuing materials reveals an unusually high dielectric constant—a measure of how a lot electrical power a fabric can retailer. Most polymer dielectrics have values round 4, however the blended polymer dielectric within the new work had a price of 13.5.
“In the event you take a look at the literature to date, nobody has reached this stage of dielectric fixed in one of these polymer system,” Zhang says. “Placing two generally used polymers collectively and seeing this sort of efficiency was a shock to many individuals.”
As a result of the fabric can stay operational even at elevated temperatures—similar to these from excessive environmental warmth or hot spots in densely constructed parts—capacitors constructed from this polymer may doubtlessly retailer the identical quantity of power in a smaller bundle.
“With this materials, you can also make the identical gadget utilizing about [one-fourth as much] materials,” Zhang says. “As a result of the polymers themselves are cheap, the fee doesn’t improve. On the identical time, the element can change into smaller and lighter.”
How the polymer combine improves capacitors
The researchers’ discovering is “an enormous development,” says Alamgir Karim, a polymer analysis director on the College of Houston who was not concerned within the Penn State growth. “Usually once you combine polymers, you don’t anticipate the dielectric fixed to extend.”
Karim says the impact seemingly arises from nanoscale interfaces created when the polymers partially separate. “At a few 50–50 combination, the polymers don’t absolutely combine and as an alternative create a really massive interfacial space,” he says. “These interfaces could also be the place the weird electrical habits comes from.”
If the fabric may be produced at scale, it may assist handle a key bottleneck in high-power electronics. Increased-temperature capacitors may cut back cooling necessities and permit engineers to pack extra energy into smaller techniques—a bonus for aerospace platforms, electrical automobiles, the electric grid, and different high-temperature environments.
However translating the idea from laboratory strategies to business manufacturing could current challenges, says Zongliang Xie, a postdoctoral researcher on the Lawrence Berkeley National Laboratory. The Penn State workforce is now producing small dielectric movies, however industrial capacitor manufacturing usually requires steady rolls of fabric that may prolong for kilometers.
“Business usually prefers extrusion-based processing as a result of it’s simpler and cheaper to manage,” Xie says. “Scaling to supply nice lengths of movie whereas sustaining the identical construction and efficiency may complicate issues. There’s potential, however it’s additionally difficult.”
Nonetheless, researchers say the invention demonstrates that new efficiency limits should be unlocked utilizing acquainted supplies. “Creating the fabric is barely step one,” Zhang says. “However it reveals people who this barrier may be damaged.”
