3 February 1967 is a day that belongs within the annals of music historical past. It’s the day that Jimi Hendrix entered London’s Olympic Studios to report a track utilizing a brand new element. The track was “Purple Haze,” and the element was the Octavia guitar pedal, created for Hendrix by sound engineer Roger Mayer. The pedal was a key factor of a fancy chain of analog components chargeable for the ultimate sound, together with the acoustics of the studio room itself. After they despatched the tapes for remastering within the United States, the sounds on it had been so novel that they included an accompanying observe explaining that the distortion on the finish was not malfunction however intention. A couple of months later, Hendrix would ship his legendary electric guitar efficiency on the Monterey Worldwide Pop Competition.
“Purple Haze” firmly established that an electrical guitar can be utilized not simply as a stringed instrument with built-in pickups for handy sound amplification, but in addition as a full-blown wave synthesizer whose output might be manipulated at will. Trendy guitarists can reproduce Hendrix’s chain utilizing separate plug-ins in digital audio workstation software program, however the magic typically disappears when all the pieces is buffered and quantized. I wished to seek out out if a extra systematic method might do a greater job and supply insights into how Hendrix created his groundbreaking sound.
My fascination with Hendrix’s Olympic Studios’ efficiency arose as a result of there’s a “Hendrix was an alien” narrative surrounding his musical innovation—that his music appeared kind of out of nowhere. I wished to exchange that narrative with an engineering-driven account that’s inspectable and reproducible—plots, fashions, and a sign chain from the guitar by the pedals which you could probe stage by stage.
Every results pedal in Hendrix’s chain contributed to enhancing the electrical guitar past its intrinsic limits. A number of plots from the full-circuit evaluation reveals how the Fuzz Face turns a sinusoid sign from a string into an virtually sq. wave; how the Octavia pedal inverts half the enter waveform to double its frequency; how the wah-wah pedal acts as band-pass filter; and the way the Uni-Vibe pedal introduces selective part shifts to paint the sound.James Provost/ Rohan S. Puranik
Though I work largely within the digital area as an edge-computing architect in my day job, I knew that analog circuit simulations can be the important thing to going deeper.
My first step was to take a look at the challenges Hendrix was attempting to handle. Earlier than the Nineteen Thirties, guitars had been too quiet for big ensembles. Electromagnetic pickups—coils of wire wrapped round magnets that detect the vibrations of metallic strings—fastened the loudness downside. However they left a brand new one: the envelope, which specifies how the amplitude of a observe varies because it’s performed on an instrument, beginning with a rising preliminary assault, adopted by a falling decay, after which any maintain of the observe after that. Electrical guitars assault laborious, decay quick, and don’t maintain like bowed strings or organs. Early producers tried to switch the electrical guitar’s traits through the use of hole our bodies fitted with magnetic pickups, however the instrument nonetheless barked greater than it sang.
Hendrix’s mission was to reshape each the electrical guitar’s envelope and its tone till it might really feel like a human voice. He tackled the guitar’s constraints by augmenting it. His answer was basically a modular analog sign chain pushed not by knobs however by arms, ft, achieve staging, and bodily motion in a suggestions subject.

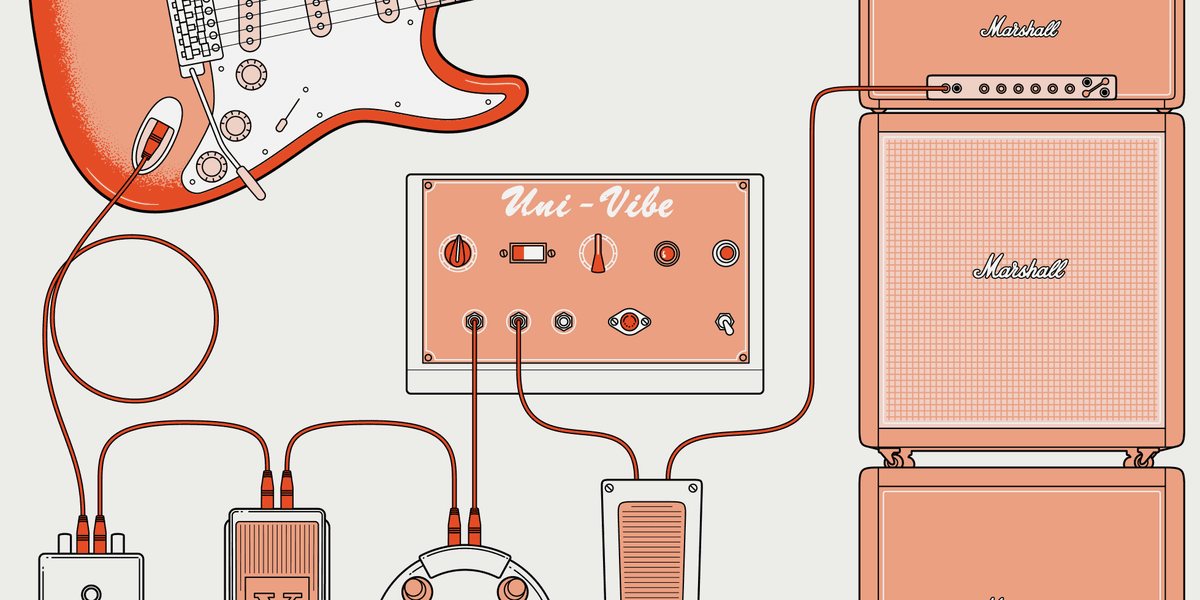

Hendrix’s setups are effectively documented: Set lists, studio logs, and interviews with Mayer and Eddie Kramer, then the lead engineer at Olympic Studios, fill within the particulars. The sign chain for “Purple Haze” consisted of a set of pedals—a Fuzz Face, the Octavia, and a wah-wah—plus a Marshall 100-watt amplifier stack, with the guitar and room acoustics closing a suggestions loop that Hendrix tuned along with his personal physique. Later, Hendrix would additionally incorporate a Uni-Vibe pedal for a lot of of his tracks. All of the pedals had been industrial fashions apart from the Octavia, which Mayer constructed to provide a distorted sign an octave larger than its enter.
Hendrix didn’t converse in decibels and ohm values, however he collaborated with engineers who did.
I obtained the schematics for every of those components and their accepted parameter ranges, and transformed them into netlists that ngspice can course of (ngpsice is an open source implementation of the Spice circuit analyzer). The Fuzz Face pedal got here in two variants, utilizing germanium or silicon transistors, so I created fashions for each. In my fashions, Hendrix’s guitar pickups had a resistance of 6 kiloohms and an inductance of two.5 henrys with a sensible cable capacitance.
I chained the circuit simulations collectively utilizing a script, and I produced data-plot and pattern sound outputs with Python scripts. The entire ngspice recordsdata and different scripts can be found in my GitHub repository at github.com/nahorov/Hendrix-Systems-Lab, with directions on methods to reproduce my simulations.
What Does The Evaluation of Hendrix’s Sign Chain Inform Us?
Plotting the sign at completely different factors within the chain with completely different parameters reveals how Hendrix configured and manipulated the nonlinear complexities of the system as an entire to achieve his expressive objectives.
A couple of highlights: First, the Fuzz Face is a two-transistor suggestions amplifier that turns a mild sinusoid sign into an virtually binary “fuzzy” output. The fascinating conduct emerges when the guitar’s quantity is decreased. As a result of the pedal’s enter impedance could be very low (about 20 kΩ), the pickups work together instantly with the pedal circuit. Decreasing amplitude restores a sinusoidal form—producing the well-known “cleanup effect” that was an indicator of Hendrix’s sound, the place the fuzz drops out and in as desired whereas he performed.
The Jimi Hendrix Expertise, (left to proper) Mitch Mitchel, Jimi Hendrix, Noel ReddingFred W. McDarrah/Getty Photos
Second, the Octavio pedal used a rectifier, which usually converts alternating to direct current. Mayer realized {that a} rectifier successfully flips every trough of a waveform right into a peak, doubling the variety of peaks per second. The result’s an obvious doubling of frequency—a bloom of second-harmonic content material that the ear hears a vibrant octave above the elemental.
Third, the wah-wah pedal is a band-pass filter: Frequency plots present the middle frequency sweeping from roughly 300 hertz to 2 kilohertz. Hendrix used it to make the guitar “speak” with vowel sounds, most iconically on “Voodoo Child (Slight Return).”
Fourth, the Uni-Vibe cascades 4 phase-shift sections managed by photoresistors. In circuit phrases, it’s a low-frequency oscillator modulating a variable-phase community; in musical phrases it’s movement and air.
Lastly, the entire chain turned a closed loop by driving the Marshall amplifier near saturation, which amongst different issues extends the maintain. In a reflective room, the guitar strings couple acoustically to the audio system—transfer just a few centimeters and also you shift from one steady suggestions mode to a different. To an engineer, this can be a gain-controlled acoustic suggestions system. To Hendrix, it was a part of the instrument. He discovered to tune oscillation with distance and angle, shaping sirens, bombs, and harmonics by strolling the sting of instability.
Hendrix didn’t converse in decibels and ohm values, however he collaborated with engineers who did—Mayer and Kramer—and iterated quick as a techniques engineer. Reframing Hendrix as an engineer doesn’t diminish the artwork. It explains how one individual, in underneath 4 years as a bandleader, might pull the electrical guitar towards its full potential by systematically augmenting the instrument’s shortcomings for optimum expression.
This text seems within the March 2026 print concern as “Jimi Hendrix, Methods Engineer.”
