The ability surging via transmission traces over the long-lasting stone partitions of England’s northern countryside is pushing the UK’s grid to its limits. To the north, Scottish wind farms have doubled their output over the previous decade. Within the south, the place electrical energy demand is heaviest, electrification and new data centers promise to attract extra energy, however new era is falling brief. Development on a brand new 3,280-megawatt nuclear power plant west of London lags years delayed.
The result’s a lopsided circulate of energy that’s maxing out transmission corridors from the Highlands to London. That grid pressure gained’t ease any time quickly. New traces linking Scotland to southern England are not less than three to 4 years from operation, and prone to additional delays from fierce native opposition.
On the identical time, U.Okay. Prime Minister Keir Starmer is bent on putting in much more wind power and slashing fossil-fuel era by 2030. His Labour authorities says low-carbon energy is cheaper and safer than natural gas, a lot of which comes from Norway through the world’s longest underwater gasoline pipeline and is susceptible to disruption and sabotage.
The dearth of transmission traces out there to maneuver energy flowing south from Scottish wind farms has precipitated grid congestion in England. To raised handle it, the U.Okay. has put in SmartValves at three substations in northern England—Penwortham, Harker, and Saltholme—and is setting up a fourth at South Shields. Chris Philpot
The U.Okay.’s ensuing grid congestion prevents transmission operators from delivering a few of their cleanest, most cost-effective era to all the customers who need it. Congestion is a perennial downside each time energy consumption is on the rise. It pushes circuits to their thermal limits and creates grid stability or safety constraints.
With congestion aid wanted now, the U.Okay.’s grid operators are getting artistic, quickly tapping new cable designs and improvements in power electronics to squeeze extra energy via present transmission corridors. These grid-enhancing technologies, or GETs, current a low-cost technique to bridge the hole till new traces may be constructed.
“GETs permit us to function the system more durable earlier than an funding arrives, and so they save a s***load of cash,” says Julian Leslie, chief engineer and director of strategic vitality planning on the Nationwide Power System Operator (NESO), the Warwick-based company that directs U.Okay. vitality markets and infrastructure.
Transmission traces operating throughout England’s countryside are maxed out, creating bottlenecks within the grid that forestall some carbon-free energy from reaching prospects. Vincent Lowe/Alamy
The U.Okay.’s excessive grid problem has made it floor zero for a few of the boldest GETs testing and deployment. Such innovation entails some threat, as a result of an intervention anyplace on the U.Okay.’s tightly meshed power system can have system-wide impacts. (Grid operators elsewhere are selecting to begin with GETs at their programs’ periphery—the place there’s much less affect if one thing goes flawed.)
The query is how far—and how briskly—the U.Okay.’s grid operators can push GETs capabilities. The brand new applied sciences nonetheless have a restricted monitor report, so operators are cautiously feeling their approach towards heavier funding. Energy system specialists even have unanswered questions on these superior grid capabilities. For instance, will they create extra complexity than grid operators can handle in actual time? Would possibly suggestions between totally different gadgets destabilize the grid?
There is no such thing as a consensus but as to methods to even display screen for such dangers, not to mention shield towards them, says Robin Preece, professor in future power systems on the College of Manchester, in England. “We’re initially of building that now, however we’re constructing on the identical time. So it’s sort of this race between the need to get this expertise put in as rapidly as potential, and our potential to totally perceive what’s taking place.”
How is the U.Okay. Managing Grid Congestion?
Probably the most revolutionary and high-stakes tips within the U.Okay.’s toolbox employs digital power-flow controllers, gadgets that shift electrical energy from jammed circuits to these with spare capability. These gadgets have been in a position to finesse sufficient extra wind energy via grid bottlenecks to interchange a complete gas-fired generator. Put in in northern England 4 years in the past by Smart Wires, primarily based in Durham, N.C., these SmartValves are anticipated to assist much more as NESO installs extra of them and masters their capabilities.
Warwick-based National Grid Electricity Transmission, the grid operator for England and Wales, is including SmartValves and likewise changing a number of thousand kilometers of overhead wire with superior conductors that may carry extra present. And it’s utilizing a way referred to as dynamic line rating, whereby sensors and fashions work collectively to foretell when climate circumstances will permit traces to hold additional present.
Other forms of GETs are additionally getting used globally. Superior conductors are essentially the most broadly deployed. Dynamic line score is more and more widespread in European nations, and U.S. utilities are starting to take it significantly. Europe additionally leads the world in topology-optimization software program, which reconfigures energy routes to alleviate congestion, and superior power-flow-control gadgets like SmartValves.
Engineers set up dynamic line score expertise from the Boston-based firm LineVision on Nationwide Grid’s transmission community. National Grid Electricity Transmission
SmartValves’ chops stand out on the Penwortham substation in Lancashire, England, certainly one of two Nationwide Grid websites the place the machine made its U.Okay. debut in 2021. Penwortham substation is a significant transmission hub, whose spokes desperately want congestion aid. Auditory proof of heavy energy flows was clear throughout my go to to the substation, which buzzes loudly. The sound is because of the electromechanical stresses on the substation’s large transformers, explains my information, Nationwide Grid commissioned engineer Paul Lloyd.
Penwortham’s transformers, circuits, and protecting relays are unfold over 15 hectares, sandwiched between pastureland and suburban properties close to Preston, a small metropolis north of Manchester. Energy arrives from the north on two pairs of 400-kilovolt AC traces, and most of it exits southward through 400-kV and 275-kV double-circuit wires.
Transmission traces result in the congested Penwortham substation, which has change into a test-bed for GETs reminiscent of SmartValves and dynamic line score. Peter Fairley
What makes the substation a strategic test-bed for GETs is its place simply north of the U.Okay. grid’s largest bottleneck, often called Boundary B7a, which runs east to west throughout the island. 9 circuits traverse the B7a: the 4 AC traces headed south from Penwortham, 4 AC traces nearer to Yorkshire’s North Sea coast, and a high-voltage direct-current (HVDC) hyperlink offshore. In idea, these circuits can collectively carry 13.6 gigawatts throughout the B7a. However NESO caps its circulate at a number of gigawatts decrease to make sure that no circuits overload if any two traces flip off.
Such limits are needed for grid reliability, however they’re leaving terawatt-hours of wind energy stranded in Scotland and growing customers’ vitality prices: an additional £196 million (US $265 million) in 2024 alone. The prices stem from NESO having to ramp up gas-fired mills to satisfy demand down south whereas concurrently compensating wind-farm operators for curbing their output, as required underneath U.Okay. coverage.
So Nationwide Grid retains tweaking Penwortham. In 2011 the substation acquired its first huge GET: phase-shifting transformers (PSTs), a sort of analog circulate controller. PSTs alter energy circulate by creating an AC waveform whose alternating voltage leads or lags its alternating present. They accomplish that by every PST utilizing a pair of related transformers to selectively mix energy from an AC transmission circuit’s three phases. Motors reposition electrical connections on the transformer coils to regulate flows.
Section-shifting transformers (PSTs) had been put in in 2012 on the Penwortham substation and are the analog predecessor to SmartValves. They’re highly effective but additionally cumbersome and comparatively rigid. It could take 10 minutes or extra for the PST’s motorized actuators at Penwortham to faucet their full vary of circulate management, whereas SmartValves can shift inside milliseconds.Nationwide Grid Electrical energy Transmission
Penwortham’s pair of 540-tonne PSTs occupy all the south finish of the substation, together with their devoted chillers, relays, and power supplies. Delivering all that {hardware} required intensive highway closures and floating an enormous barge up the adjoining River Ribble, an occasion that made nationwide information.

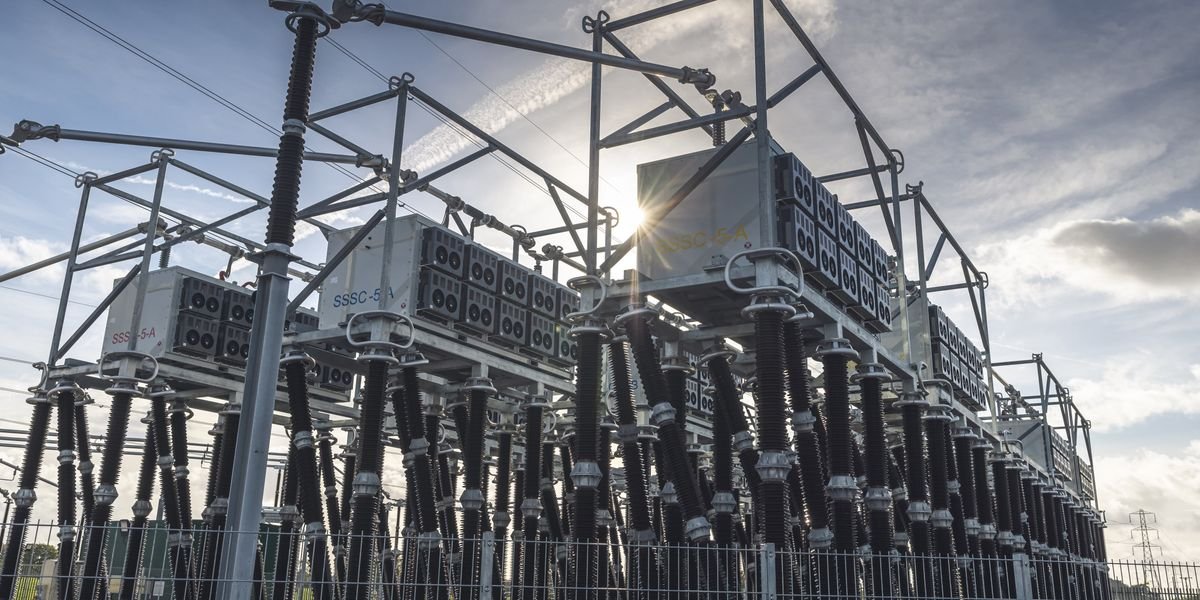

The SmartValves at Penwortham stand in stark distinction to the PSTs’ heft, complexity, and mechanics. SmartValves are a sort of static synchronous sequence compensator, or SSSC—a solid-state different to PSTs that employs energy electronics to tweak energy flows in milliseconds. I noticed two units of them tucked right into a nook of the substation, occupying 1 / 4 of the realm of the PSTs.
The SmartValve V103 design [above] skilled some teething and reliability points that had been ironed out with the expertise’s subsequent iteration, the V104. Nationwide Grid Electrical energy Transmission/Sensible Wires
The SmartValves are firstly an insurance coverage coverage to protect towards a doubtlessly crippling occasion: the sudden lack of one of many B7a’s 400-kV traces. If that had been to occur, gigawatts of energy would immediately search one other route over neighboring traces. And if it occurred on a windy day, when numerous energy is streaming in from the north, the ensuing surge might overload the 275-kV circuits headed from Penwortham to Liverpool. The SmartValves’ job is to avoid wasting the day.
They do that by including impedance to the 275-kV traces, thus performing to divert extra energy to the remaining 400-kV traces. This rerouting of energy prevents a blackout that would doubtlessly cascade via the grid. The upside to that safety is that NESO can safely schedule an extra 350 MW over the B7a.
The financial savings add up. “That’s 350 MW of wind you’re not curbing from wind farms. In order that’s 350 instances £100 a megawatt-hour,” says Leslie, at NESO. “That’s additionally 350 MW of gas-fired energy that you just don’t want to interchange the wind. In order that’s 350 instances £120 a megawatt-hour. The numbers get huge rapidly.”
Mark Osborne, the Nationwide Grid lead asset life-cycle engineer managing its SmartValve initiatives, estimates the gadgets are saving U.Okay. prospects over £100 million (US $132 million) a 12 months. At that price, they’ll pay for themselves “inside just a few years,” Osborne says. By utility requirements, the place investments are usually amortized over a long time, that’s “nearly instantly,” he provides.
How Do Grid-Enhancing Applied sciences Work?
The way in which Sensible Wires’ SSSC gadgets alter energy circulate is predicated on emulating impedance, which is a wierd beast created by AC energy. An AC circulate’s altering magnetic discipline induces an extra voltage within the line’s conductor, which then acts as a drag on the preliminary discipline. Sensible Wires’ SSSC gadgets alter energy circulate by emulating that pure course of, successfully including or subtracting impedance by including their very own voltage wave to the road. Including a wave that leads the unique voltage wave will increase circulate, whereas including a lagging wave will cut back circulate.
The SSSC’s submodules of capacitors and high-speed insulated-gate bipolar transistors function in sequence to soak up energy from a line and synthesize its novel impedance-altering waves. And because of its digital controls and switches, the machine can inside milliseconds flip from most energy push to most pull.
You may hint the event of SSSCs to the arrival of HVDC transmission within the Nineteen Fifties. HVDC converters take energy from an AC grid and effectively convert it and switch it over a DC line to a different level in the identical grid, or to a neighboring AC grid. In 1985, Narain Hingorani, an HVDC knowledgeable on the Palo Alto–primarily based Electric Power Analysis Institute, confirmed that comparable converters might modulate the circulate of an AC line. 4 years later, Westinghouse engineer Laszlo Gyugyi proposed SSSCs, which turned the premise for Sensible Wires’ packing containers.
Main power-equipment producers tried to commercialize SSSCs within the early 2000s. However utilities had no use for circulate management again then as a result of that they had loads of typical power plants that would meet native demand when transmission traces had been full.
The image modified as photo voltaic and wind era exploded and traditional crops started shutting down. In years previous, grid operators addressed grid congestion by turning energy crops on or off in strategic places. However as of 2024, the U.Okay. had shut down all of its coal-fired energy crops—save one, which now burns wooden—and it has vowed to slash gas-fired era from a couple of quarter of electrical energy provide in 2024 to at most 5 p.c in 2030.
The U.Okay.’s excessive grid problem has made it floor zero for a few of the boldest GETs testing and deployment.
To grab the rising market alternative offered by altering grid operations, Sensible Wires needed to make an important expertise improve: ditching transformers. The corporate’s first SSSC, and people from different suppliers, relied on a transformer to soak up lightning, voltage surges, and each different grid assault that would fry their energy electronics. This made them cumbersome and added price. So Sensible Wires engineers set to work in 2017 to see if they might stay with out the transformer, says Frank Kreikebaum, Sensible Wires’s interim chief of engineering. Two years later the corporate had assembled a transformerless digital protect. It consisted of a set of filters and diverters, together with a management system to activate them. Ditching the transformer produced a trim, standardized product—a modular system-in-a-box.
SmartValves work at any voltage and are usually ganged collectively to attain a desired degree of circulate management. They are often delivered quick, and so they match within the sorts of tight areas which can be widespread in substations. “It’s not about price, despite the fact that we’re aggressive there. It’s about ‘how fast’ and ‘can it match,’” says Kreikebaum.
And if the grid’s pinch level shifts? The gadgets may be rapidly moved to a different substation. “It’s a Lego-brick construct,” says Owen Wilkes, Nationwide Grid’s director of community design. Wilkes’s crew decides the place so as to add gear primarily based on right this moment’s greatest projections, however he appreciates the flexibleness to answer sudden adjustments.
Nationwide Grid’s deployments in 2021 had been the highest-voltage set up of SSSCs on the time, and success there’s fueling growth. Nationwide Grid now has packs of SmartValves put in at three substations in northern England and underneath development at one other, with 5 extra installations deliberate in that space. Sensible Wires has additionally commissioned business initiatives at transmission substations in Australia, Brazil, Colombia, and the United States.
Dynamic Line Ranking Boosts Grid Effectivity
Along with SSSCs, Nationwide Grid has deployed lidar that senses sag on Penwortham’s 275-kV traces—a sign that they’re beginning to overheat. The sensors are a part of a dynamic line score system and assist grid operators maximize the quantity of present that high-voltage traces can carry primarily based on near-real-time climate circumstances. (Cooler climate means extra capability.) Now the identical expertise is being deployed throughout the B7a—a £1 million funding that’s projected to avoid wasting customers £33 million yearly, says Corin Ireland, a Nationwide Grid optimization engineer with the duty of seizing GETs alternatives.
There’s additionally a number of outdated conductor wires being swapped out for these that may carry extra energy. Nationwide Grid’s marketing strategy calls for two,416 kilometers of such reconductoring over the approaching 5 years, which is about 20 p.c of its system. Scotland’s transmission operators are busy with their very own huge swaps.
Scottish wind farms have doubled their energy output over the previous decade, however it typically will get stranded because of grid congestion in England. Andreas Berthold/Alamy
However whereas Nationwide Grid and NESO are making a few of the boldest deployments of GETs on the earth, they’re not totally tapping the applied sciences’ capabilities. That’s partly because of the conservative nature of energy utilities, and partly as a result of grid operators have already got lots to maintain their eyes on. It additionally stems from the unknowns that also encompass GETs, like whether or not they would possibly take the grid in unexpected instructions if allowed to reply mechanically, or get caught in a suggestions loop responding to one another. Think about SmartValve controllers at totally different substations preventing, with one substation leaping to take away impedance that the opposite simply added, inflicting fluctuating energy flows.
“These applied sciences function in a short time, however the computer systems within the management room are nonetheless very reliant on folks making selections,” says Ireland. “So there are time scales that we’ve got to consider when planning and working the community.”
This type of conservative dispatching leaves worth on the desk. For instance, the dynamic line score fashions can spit out new line rankings each quarter-hour, however grid operators get updates solely each 24 hours. Fewer updates means fewer alternatives to faucet the system’s potential to spice up capability. Equally, for SmartValves, NESO prompts installations at just one substation at a time. And control-room operators flip them on manually, despite the fact that the gadgets might mechanically reply to faults inside milliseconds.
Nationwide Grid is upgrading transmission traces relationship way back to the Nineteen Sixties. This contains putting in conductors that retain their power at increased temperatures, permitting them to hold extra energy. Nationwide Grid Electrical energy Transmission
Modeling by Sensible Wires and Nationwide Grid exhibits a big capability increase throughout Boundary B7a if Penwortham’s SmartValves had been to work in tandem with one other set additional up the road. For instance, when Penwortham is including impedance to push megawatts off the 275-kV traces, a set nearer to Scotland might concurrently pull the facility north, nudging the sum over to the B7a’s japanese circuits. Simulations by Andy Hiorns, a former Nationwide Grid planning director who consults for Sensible Wires, counsel that this sort of cooperative motion ought to enhance the B7a circuits’ usable capability by one other 250 to 300 MW. “You double the effectiveness through the use of them as pairs,” he says.
Working a number of circulate controllers could change into needed for unlocking the following boundary en path to London, south of the B7a, referred to as Boundary B8. As dynamic line score, beefier conductors, and SmartValves ship extra energy throughout the B7a, traces traversing B8 are reaching their limits. Ultimately, each boundary alongside the route must be upgraded.
In the meantime, again at its U.S. headquarters, Sensible Wires is creating different purposes for its SSSCs, reminiscent of filtering out energy oscillations that may destabilize grids and cut back allowable transfers. That functionality may very well be unlocked remotely with firmware.
The corporate can be engaged on a take a look at program that would activate pairs of SmartValve installations throughout slack moments when there isn’t a lot happening within the management rooms. That may give Nationwide Grid and NESO operators a possibility to watch the impacts, and to get extra comfy with the expertise.
Nationwide Grid and Sensible Wires are additionally exhausting at work creating industry-first optimization software program for coordinating flow-control gadgets. “It’s potential to increase the expertise from how we’re utilizing it right this moment,” says Eire at Nationwide Grid. “That’s the thrilling bit.”
NESO’s Julian Leslie shares that pleasure and says he expects SmartValves to start working collectively to ease energy via the grid—as soon as the operators have the modeling proper and get slightly extra comfy with the expertise. “It’s a fantastic innovation that has the potential to be actually transformational,” he says. “We’re simply not fairly there but.”
