Within the Eighties and Nineties, on-line communities fashioned round tiny digital oases referred to as bulletin-board programs. Typically run out of individuals’s properties and accessible by just one or two individuals at a time through dial-up modems, these BBSs let people exchange public and private messages, play games, and share files utilizing easy menus and a text-based interface. Right now, there may be an uptick in curiosity in BBSs as a approach to create idiosyncratic digital areas away from the glare of enormous social-media platforms like Facebook, X, and Bluesky. Today’s BBSs are typically accessed over the Internet, slightly than dial-up connections. However their previous standalone mojo is feasible because of one of many hottest new radio applied sciences: Meshtastic.
Certainly, this text is basically the most recent installment in what has grow to be an unintended sequence that I’ll name “Climbing the LoRa Stack.” LoRa first appeared on Hands On’s radar in 2020, when fanatics realized that the long-range, low-bandwidth protocol had plenty of potential past simply machine-to-machine Internet of Things connections, comparable to constructing person-to-person textual content messagers. Then final 12 months we talked about the advent of Meshtastic, which provides mesh-networking capabilities to LoRa, permitting units to autonomously create wireless networks and alternate information over a a lot bigger space. In that article, I questioned what sort of fascinating purposes is perhaps constructed on prime of Meshtastic—and that brings us to at the moment.
Created by the Comms Channel, the open source TC2-BBS software program was first launched final summer season. It’s a set of Python scripts that depends on simply two further libraries: one for speaking to Meshtastic radios over a USB connection and one which helps handle inside information site visitors. TC2-BBS doesn’t require plenty of computing energy as a result of the low-bandwidth limits of LoRa imply it’s by no means dealing with a lot information at any given time. All of this implies the BBS code may be very moveable and you may run it on one thing as low-powered as a Raspberry Pi Zero.

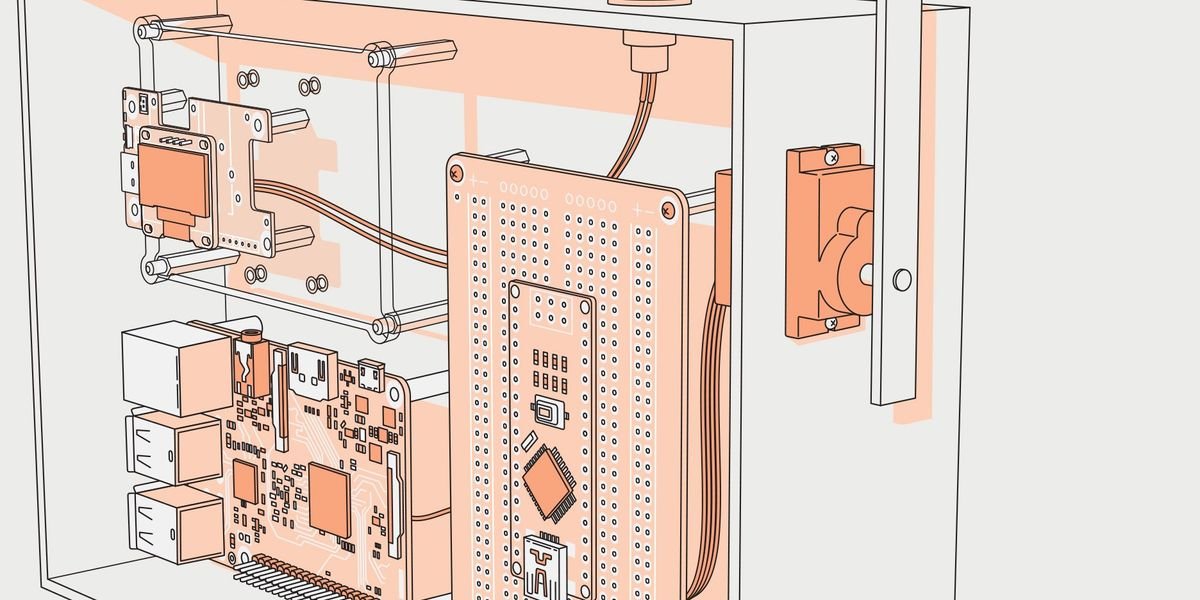

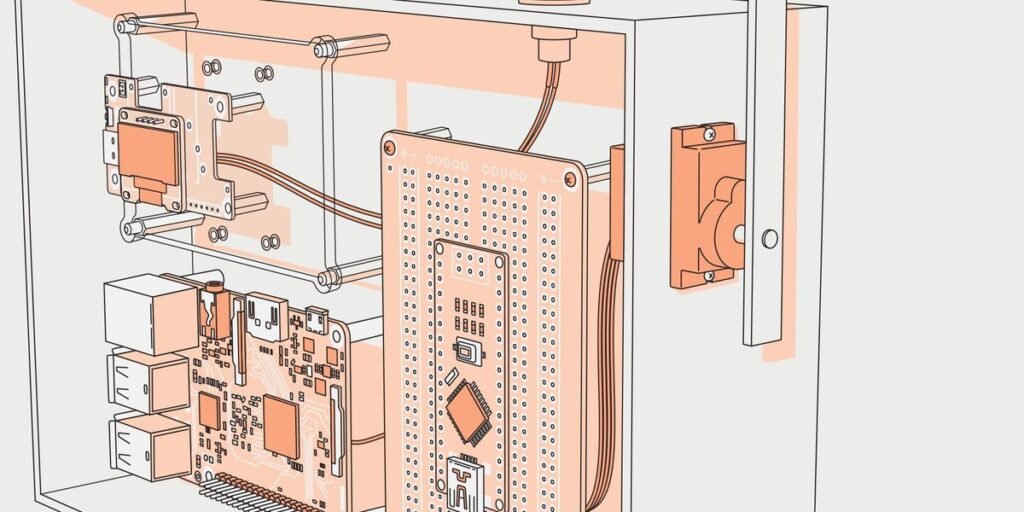

The BBS system makes use of a WisBlock Meshtastic radio with a standing show [middle left and center], which might talk wirelessly utilizing LoRa and bluetooth antennas [top]. A servo strikes a bodily flag underneath the management of an Arduino Nano [middle right and bottom], whereas a Raspberry Pi runs the BBS Python software program.James Provost
The present TC2-BBS characteristic set is minimal, albeit underneath lively improvement. There’s no possibility for sharing recordsdata, the interface is fundamental even by BBS requirements, and there aren’t any “door games,” which let guests play what have been sometimes turn-based textual content adventures or technique video games. Alternatively TC2-BBS does have some options from the extra superior bulletin-board programs of yore, comparable to the flexibility to store-and-forward e mail amongst different BBSs, much like the FidoNet network, which flourished within the early Nineties till it was supplanted by the Internet. And in a nod to the whimsy of door video games, the TC2-BBS system does have an possibility that lets customers ask for a fortune-cookie-style aphorism, à la the Unix fortune command. And naturally, anybody can entry it at any time with out having to fret a couple of busy cellphone line.
I put in the software program on a spare Raspberry Pi 3, following the straightforward directions on GitHub. There’s a Docker picture, however as a result of I used to be dedicating this Pi to the BBS, I simply put in it immediately. For the radio {hardware}, I hooked the Pi as much as a RAKwireless WisBlock, which runs Meshtastic out of the field. Along with a LoRa antenna, the WisBlock additionally has a Bluetooth antenna that enables for simple configuration of the radio through a smartphone app.
Anybody can entry it at any time with out having to fret a couple of busy cellphone line
The most important hiccup was energy: Usually the WisBlock radio is powered through its USB connection, however my hooked up Pi couldn’t meet the radio’s wants with out triggering low-voltage warnings. So I powered the WisBlock individually by way of a connector usually reserved for accepting juice from a photo voltaic panel.
Quickly I had IEEE Spectrum’s TC2-BBS up and working and fortunately speaking through Meshtastic with a HelTXT communicator I’d purchased for my earlier Fingers On experiments. Now anybody inside three hops of Spectrum’s midtown Manhattan workplace on New York Metropolis’s rising Meshtastic community can depart a message by sending “hi there” to our node, marketed on the Meshtastic community as IEEE Spectrum BBS.
However in fact, similar to the BBS’s of previous, it was going to take some time for individuals to appreciate it was there and begin leaving messages. I may monitor the BBS for guests through a show related to the Pi, however after just a little poking round within the Python scripts, I noticed I may do one thing extra enjoyable. Through the use of the RPi.GPIO library and including a number of traces of code on the level the place the BBS shops board messages in reminiscence, I set the Pi to pulse certainly one of its general-purpose enter/output (GPIO) pins on and off for a second each time a brand new message was posted.
The Raspberry Pi sends and receives serial information from the WisBlock Meshtastic radio, and it sends pulses through its GPIO header to the Arduino Nano when a publish is added to the bulletin-board database. When the Nano receives a sign, it raises a bodily flag till the reset button is pushedJames Provost
I fished an Arduino Nano out of my drawer and hooked it as much as a servo, a push button, and the Pi’s GPIO pin. The Nano listens for an incoming pulse from the Pi. When the Nano hears one, it strikes the arm of the servo by way of 90 levels, elevating just a little crimson flag. Urgent the button to acknowledge the flag lowers the notification flag once more and the Nano resumes listening for an additional pulse. This eliminates the necessity to maintain the Pi plugged right into a show, and I can examine to see what the brand new message is through my HelTXT radio or smartphone.
So please, in the event you’re in New York City and have a Meshtastic radio, drop by our new/previous digital watering gap and depart a message! As for me, I’m going to maintain climbing up the LoRa stack and see if I can write a type of door video games.
