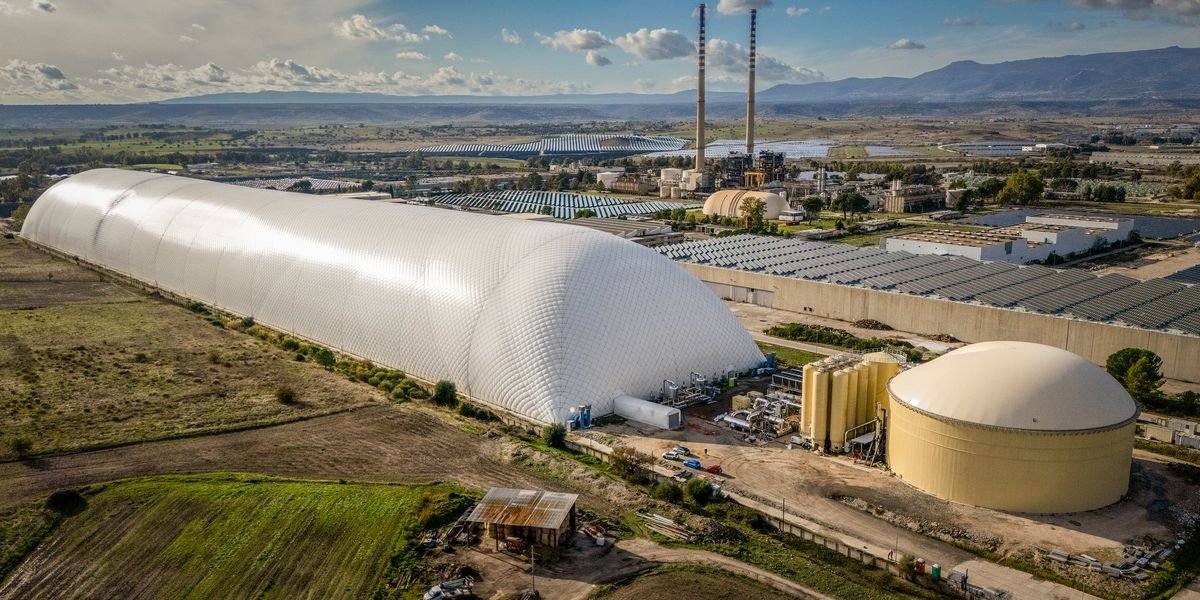

This big bubble on the island of Sardinia holds 2,000 tonnes of carbon dioxide. However the gasoline wasn’t captured from manufacturing facility emissions, nor was it pulled from the air. It got here from a gasoline provider, and it lives completely contained in the dome’s system to serve an eco-friendly goal: to retailer massive quantities of extra renewable power till it’s wanted.
Developed by the Milan-based firm Energy Dome, the bubble and its surrounding equipment show a first-of-its-kind “CO2 Battery,” as the corporate calls it. The power compresses and expands CO2 each day in its closed system, turning a turbine that generates 200 megawatt-hours of electrical energy, or 20 MW over 10 hours. And in 2026, replicas of this plant will begin popping up throughout the globe.
We imply that actually. It takes simply half a day to inflate the bubble. The remainder of the ability takes lower than two years to construct and may be finished nearly anyplace there’s 5 hectares of flat land.
The primary to construct one exterior of Sardinia can be considered one of India’s largest energy firms, NTPC Limited. The corporate expects to finish its CO2 Battery someday in 2026 on the Kudgi energy plant in Karnataka, in India. In Wisconsin, in the meantime, the general public utility Alliant Energy acquired the all clear from authorities to start building of 1 in 2026 to produce energy to 18,000 houses.
And Google likes the concept a lot that it plans to quickly deploy the services in all of its key data-center areas in Europe, the US, and the Asia-Pacific area. The concept is to offer electricity-guzzling data centers with round the clock clean energy, even when the solar isn’t shining or the wind isn’t blowing. The partnership with Power Dome, introduced in July, marked Google’s first funding in long-duration energy storage.
“We’ve been scanning the globe in search of totally different options,” says Ainhoa Anda, Google’s senior lead for power technique, in Paris. The problem the tech big has encountered will not be solely discovering a long-duration storage choice, but additionally one which works with the distinctive specs of each area. “So standardization is admittedly necessary, and this is without doubt one of the points that we actually like” about Power Dome, she says. “They will actually plug and play this.”
Google will prioritize putting the Power Dome services the place they’ll have probably the most impression on decarbonization and grid reliability, and the place there’s lots of renewable power to retailer, Anda says. The services may be positioned adjoining to Google’s knowledge facilities or elsewhere inside the identical grid. The businesses didn’t disclose the phrases of the deal.
Anda says Google expects to assist the expertise “attain an enormous business stage.”
Getting inventive with long-duration power storage
All this pleasure relies on Power Dome’s one full-size, grid-connected plant in Ottana, Sardinia, which was accomplished in July. It was constructed to assist clear up one of many power transition’s largest challenges: the necessity for grid-scale storage that may present energy for greater than 8 hours at a time. Known as long-duration power storage, or LDES in trade parlance, the idea is the important thing to maximizing the worth of renewable power.
When solar and wind are plentiful, photo voltaic and wind farms have a tendency to supply extra electrical energy than a grid wants. So storing the surplus to be used when these sources are scarce simply is sensible. LDES additionally makes the grid extra dependable by offering backup and supplementary energy.
The issue is that even the very best new grid-scale storage techniques available on the market—primarily lithium-ion batteries—present solely about 4 to eight hours of storage. That’s not lengthy sufficient to energy by means of an entire evening, or a number of cloudy and windless days, or the most well liked week of the yr, when power demand hits its peak.
After the CO2 leaves the dome, it’s compressed, cooled, diminished to a liquid, and saved in strain vessels. To launch the power, the method reverses: The liquid is evaporated, heated, expanded, after which fed by means of a turbine that generates electrical energy. Luigi Avantaggiato
Lithium-ion battery techniques could possibly be elevated in measurement to retailer extra and last more, however techniques of that measurement normally aren’t economically viable. Different grid-scale battery chemistries and approaches are in growth, similar to sodium-based, iron-air, and vanadium redox flow batteries. However the power density, prices, degradation, and funding issues have challenged the builders of these options.
Researchers have additionally experimented with storing power by compressing air, heating up blocks or sand, using hydrogen or methanol, pressurizing water deep underground, and even dangling heavy objects in the air and dropping them. (The creativity dedicated to LDES is spectacular.) However geologic constraints, financial viability, effectivity, and scalability have hindered the commercialization of those methods.
The tried-and-true grid-scale storage choice—pumped hydro, during which water is pumped between reservoirs at totally different elevations—lasts for many years and may retailer 1000’s of megawatts for days. However these techniques require particular topography, lots of land, and may take as much as a decade to construct.
CO2 Batteries examine lots of containers that different approaches don’t. They don’t want particular topography like pumped-hydro reservoirs do. They don’t want important minerals like electrochemical and different batteries do. They use elements for which provide chains exist already. Their anticipated lifetime stretches almost 3 times so long as lithium-ion batteries. And including measurement and storage capability to them considerably decreases value per kilowatt-hour. Power Dome expects its LDES resolution to be 30 % cheaper than lithium-ion.
China has taken word. China Huadian Corp. and Dongfang Electrical Corp. are reportedly constructing a CO2-based energy-storage facility within the Xinjiang area of northwest China. Media reviews show renderings of domes however give widely varying storage capacities—together with 100 MW and 1,000 MW. The Chinese language firms didn’t reply to IEEE Spectrum’s requests for info.
“What I can say is that they’re growing one thing very, very related [to Energy Dome’s CO2 Battery] however fairly massive in scale,” says Claudio Spadacini, Power Dome’s founder and CEO. The Chinese language firms “are good, they’re tremendous quick, and so they have some huge cash,” he says.
Why is Google investing in CO2 Batteries?
After I visited Power Dome’s Sardinia facility in October, the CO2 had simply been pumped out of the dome, so I used to be in a position to peek inside. It was huge, monochromatic, and just about empty. The internal membrane, which had been holding the uncompressed CO2, had collapsed throughout all the ground. A number of pockets of the gasoline remained, making the off-white sheet billow up in spots.
In the meantime, the translucent outer dome allowed some daylight to go by means of, making a creamy glow that enveloped the huge house. With no structural framing, the one factor holding the dome upright was the small distinction in strain between the within and out of doors air.
“That is unbelievable,” I mentioned to my information, Mario Torchio, Power Dome’s international advertising and communications director.
“It’s. But it surely’s physics,” he mentioned.
Outdoors the dome, a sequence of machines linked by undulating pipes strikes the CO2 out of the dome for compressing and condensing. First, a compressor pressurizes the gasoline from 1 bar (100,000 pascals) to about 55 bar (5,500,000 pa). Subsequent, a thermal-energy-storage system cools the CO2 to an ambient temperature. Then a condenser reduces it right into a liquid that’s saved in a couple of dozen strain vessels, every concerning the measurement of a college bus. The entire course of takes about 10 hours, and on the finish of it, the battery is taken into account charged.
To discharge the battery, the method reverses. The liquid CO2 is evaporated and heated. It then enters a gas-expander turbine, which is sort of a medium-pressure steam turbine. This drives a synchronous generator, which converts mechanical power into electrical power for the grid. After that, the gasoline is exhausted at ambient strain again into the dome, filling it as much as await the subsequent charging part.
Power Dome engineers examine the dryer system, which retains the gaseous CO₂ within the dome at optimum dryness ranges always.Luigi Avantaggiato
It’s not rocket science. Nonetheless, somebody needed to be the primary to place it collectively and determine how you can do it cost-effectively, which Spadacini says his firm has completed and patented. “How we seal the turbo equipment, how we retailer the warmth within the thermal-energy storage, how we retailer the warmth after condensing…can actually reduce prices and improve the effectivity,” he says.
The corporate makes use of pure, purpose-made CO2 as an alternative of sourcing it from emissions or the air, as a result of these sources include impurities and moisture that degrade the metal within the equipment.
What occurs if the dome is punctured?
On the draw back, Power Dome’s facility takes up about twice as a lot land as a comparable capability lithium-ion battery would. And the domes themselves, that are concerning the top of a sports activities stadium at their apex, and longer, would possibly stand out on a panorama and draw some NIMBY pushback.
And what if a twister comes? Spadacini says the dome can stand up to wind as much as 160 kilometers per hour. If Power Dome can get half a day’s warning of extreme climate, the corporate can simply compress and retailer the CO2 within the tanks after which deflate the outer dome, he says.
If the worst occurs and the dome is punctured, 2,000 tonnes of CO2 will enter the environment. That’s equal to the emissions of about 15 round-trip flights between New York and London on a Boeing 777. “It’s negligible in comparison with the emissions of a coal plant,” Spadacini says. Individuals will even want to remain again 70 meters or extra till the air clears, he says.
Well worth the danger? The businesses lining as much as construct these techniques appear to assume so.
